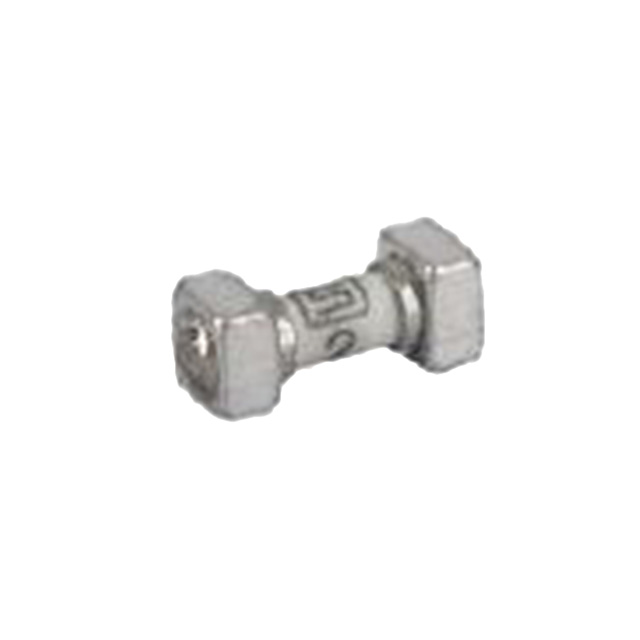

7010.9914.57

Active

SCHURTER Inc.

FUSE BRD MNT 7A 63VAC 125VDC SMD

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE BRD MNT 7A 63VAC 125VDC SMD

Technical Specifications

Parameters and characteristics for this part

Specification	7010.9914.57

Breaking Capacity @ Rated Voltage	300 A
Current Rating (Amps)	7 A
Fuse Type	Board Mount
Melting I²t	8.5
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Square End Block
Response Time	Fast Blow
Size / Dimension [x]	0.276 "
Size / Dimension [x]	7 mm
Size / Dimension [y]	0.1 in
Size / Dimension [y]	2.54 mm
Size / Dimension [z]	0.1 "
Size / Dimension [z]	2.54 mm
Voltage Rating - AC	63 V
Voltage Rating - DC	125 VDC

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type	Fuse Type	Voltage Rating - AC	Breaking Capacity @ Rated Voltage	Voltage Rating - DC	Response Time	Melting I²t
SCHURTER Inc. 7010.9914.57	0.276 "	0.1 "	2.54 mm	0.1 in	7 mm	2.54 mm	7 A	85 °C	-55 °C	2-SMD Square End Block	Surface Mount	Board Mount	63 V	300 A	125 VDC	Fast Blow	8.5
SCHURTER Inc. 7010.9914.03	0.276 "	0.1 "	2.54 mm	0.1 in	7 mm	2.54 mm	7 A	85 °C	-55 °C	2-SMD Square End Block	Surface Mount	Board Mount	63 V	300 A	125 VDC	Fast Blow	8.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1500	$ 0.88

General part information

7 A 63 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
