AM1DM-0305SH60-NZ

Active

aimtec

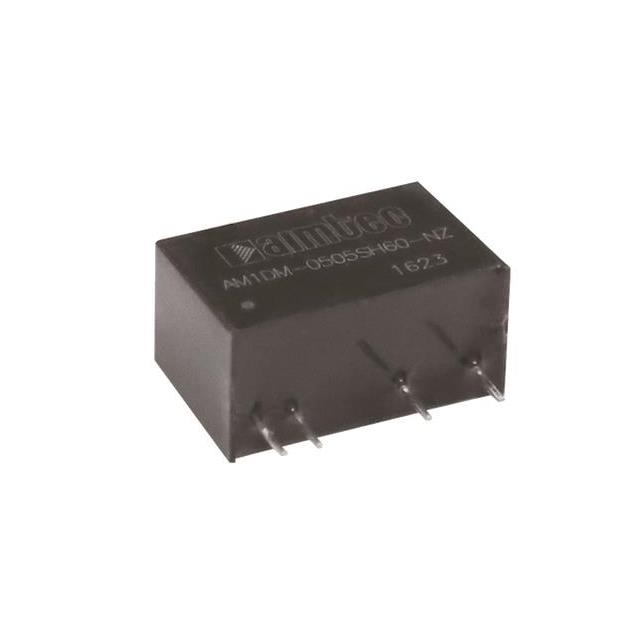

DC DC CONVERTER 5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1DM-0305SH60-NZ

Active

aimtec

DC DC CONVERTER 5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM1DM-0305SH60-NZ

Applications	Medical
Approval Agency	CE, cURus
Current - Output (Max) [Max]	200 mA
Efficiency	71 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SIP Module, 4 Leads
Size / Dimension [x]	0.77 in
Size / Dimension [x]	19.5 mm
Size / Dimension [y]	0.39 "
Size / Dimension [y]	9.8 mm
Size / Dimension [z]	0.51 in
Size / Dimension [z]	13 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	3.63 V
Voltage - Input (Min) [Min]	2.97 V
Voltage - Isolation	6000 V
Voltage - Output 1	5 V

AM1DM Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 2	Number of Outputs	Applications	Mounting Type	Package / Case	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Voltage - Input (Max) [Max]	Type	Voltage - Input (Min) [Min]	Approval Agency	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 1	Supplier Device Package	Current - Output (Max)
aimtec AM1DM-2409DH60-NZ	85 °C	-40 °C	-9 V	2	Medical	Through Hole	7-SIP Module 5 Leads	6000 V	0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	79 %	26.4 V	Isolated Module	21.6 V	CE cURus
aimtec AM1DM-0512DH60-NZ	85 °C	-40 °C	-12 V	2	Medical	Through Hole		6000 V							74 %	5.5 V	Isolated Module	4.5 V	CE cURus	42 mA	42 mA	12 V	-12 V
aimtec AM1DM-0505SH60-NZ	85 °C	-40 °C		1	Medical	Through Hole	7-SIP Module 4 Leads	6000 V							78 %	5.5 V	Isolated Module	4.5 V	CE cURus	200 mA				5 V	7-SIP
aimtec AM1DM-0305SH60-NZ	85 °C	-40 °C		1	Medical	Through Hole	7-SIP Module 4 Leads	6000 V	0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	71 %	3.63 V	Isolated Module	2.97 V	CE cURus	200 mA				5 V
aimtec AM1DM-1215DH60-NZ	85 °C	-40 °C	-15 V	2	Medical	Through Hole	7-SIP Module 5 Leads	6000 V	0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	75 %	13.2 V	Isolated Module	10.8 V	CE cURus			15 V	-15 V			34 mA
aimtec AM1DM-2412DH60-NZ	85 °C	-40 °C	-12 V	2	Medical	Through Hole	7-SIP Module 5 Leads	6000 V	0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	76 %	26.4 V	Isolated Module	21.6 V	CE cURus	42 mA	42 mA	12 V	-12 V
aimtec AM1DM-0515DH60-NZ	85 °C	-40 °C	-15 V	2	Medical	Through Hole	7-SIP Module 5 Leads	6000 V	0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	76 %	5.5 V	Isolated Module	4.5 V	CE cURus			15 V	-15 V			34 mA
aimtec AM1DM-1209DH60-NZ	85 °C	-40 °C	-9 V	2	Medical	Through Hole	7-SIP Module 5 Leads	6000 V	0.39 "	9.8 mm	0.51 in	0.77 in	19.5 mm	13 mm	80 %	13.2 V	Isolated Module	10.8 V	CE cURus
