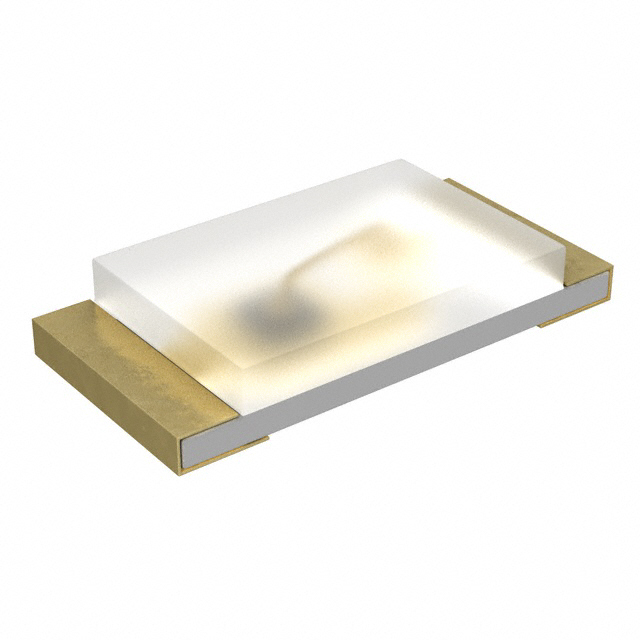

APG1608SEKC/T

Active

Kingbright

LED UNI-COLOR ORANGE 610NM 2-PIN CHIP LED T/R

Search across all available documentation for this part.

Active

Kingbright

LED UNI-COLOR ORANGE 610NM 2-PIN CHIP LED T/R

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Lens Size [y]	Lens Size [x]	Lens Style	Wavelength - Dominant	Package / Case	Lens Transparency	Color	Configuration	Lens Color	Viewing Angle	Height (Max) [Max] [z]	Supplier Device Package	Mounting Type	Wavelength - Peak	Millicandela Rating	Voltage - Forward (Vf) (Typ)
Kingbright APG1608ZGC	1.6 mm	0.8 mm	20 mA	0.8 mm	1.2 mm	Rectangle with Flat Top	525 nm	0603 (1608 Metric)	Clear	Green	Standard	Colorless	120 °	0.28 mm	Chip LED	Surface Mount	515 nm	400 mcd	3.3 V
Kingbright APG1608QBC/E	1.6 mm	0.8 mm	20 mA	0.8 mm	1.2 mm	Rectangle with Flat Top	470 nm	0603 (1608 Metric)	Clear	Blue	Standard	Colorless	120 °	0.28 mm	Chip LED	Surface Mount	468 nm	120 mcd	3.3 V
Kingbright APG1608SYKC/T	1.6 mm	0.8 mm	20 mA	0.8 mm	1.2 mm	Rectangle with Flat Top	590 nm	0603 (1608 Metric)	Clear	Yellow	Standard	Colorless	120 °	0.28 mm	Chip LED	Surface Mount	590 nm	120 mcd	2.05 V
Kingbright APG1608SEKC/T	1.6 mm	0.8 mm	20 mA	0.8 mm	1.2 mm	Rectangle with Flat Top	601 nm	0603 (1608 Metric)	Clear		Standard	Colorless	120 °	0.28 mm	Chip LED	Surface Mount	610 nm	100 mcd	2.05 V
Kingbright APG1608QBC/D	1.6 mm	0.8 mm	20 mA	0.8 mm	1.2 mm	Rectangle with Flat Top	465 nm	0603 (1608 Metric)	Clear	Blue	Standard	Colorless	120 °	0.28 mm	Chip LED	Surface Mount	460 nm	100 mcd	3.3 V
Kingbright APG1608VGAZC-RV	1.6 mm	0.8 mm	20 mA	0.8 mm	1.2 mm	Rectangle with Flat Top	525 nm	0603 (1608 Metric)	Clear	Green	Standard	Colorless	120 °	0.28 mm	Chip LED	Surface Mount	520 nm	200 mcd	3.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Orange 601nm LED Indication - Discrete 2.05V 0603 (1608 Metric)
