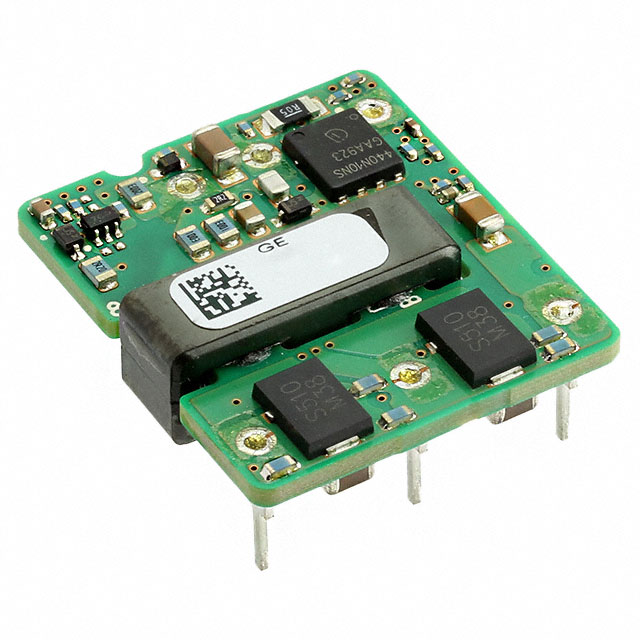

SHHN000A3CL41Z
ActiveOmniOn Power™
DC DC CONVERTER +/-15V 9W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SHHN000A3CL41Z
ActiveOmniOn Power™
DC DC CONVERTER +/-15V 9W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SHHN000A3CL41Z |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) | 300 mA |
| Efficiency | 84 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 9 W |
| Size / Dimension [x] | 1.1 " |
| Size / Dimension [x] | 27.9 mm |
| Size / Dimension [y] | 24.4 mm |
| Size / Dimension [y] | 0.96 in |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.34 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.23 | |
| 5 | $ 16.11 | |||
| 10 | $ 15.99 | |||
| 25 | $ 15.74 | |||
| 75 | $ 15.25 | |||
| 150 | $ 13.77 | |||
| 300 | $ 13.53 | |||
| 525 | $ 13.28 | |||
Description
General part information
SHHN000 Series
Isolated Module DC DC Converter 2 Output 15V -15V 300mA, 300mA 9V - 36V Input
