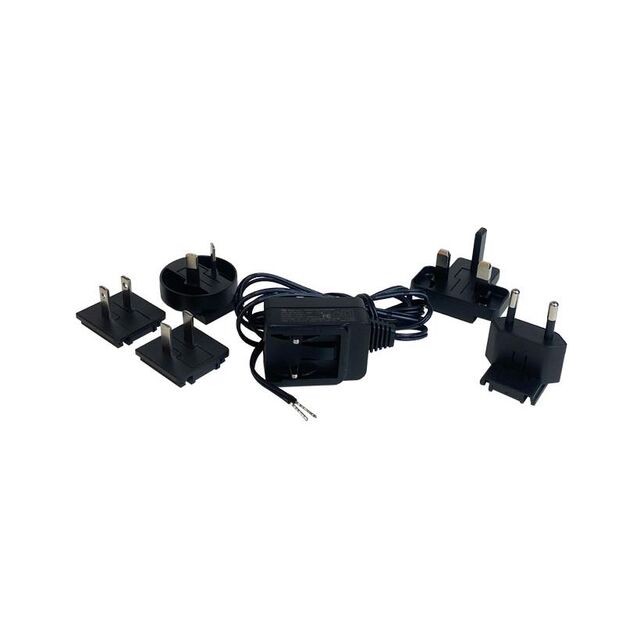

BB-SMI6B-12-V-ST
ActiveAdvantech Corp
AC/DC WALL MOUNT ADAPTER 12V 6W
Deep-Dive with AI
Search across all available documentation for this part.
BB-SMI6B-12-V-ST
ActiveAdvantech Corp
AC/DC WALL MOUNT ADAPTER 12V 6W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BB-SMI6B-12-V-ST |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | PSE, cUL, CE, CCC, GS, FCC, UL |
| Cord Length | 60.2 in |
| Cord Length | 1.53 m |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade (Included) |
| Input Type | Multi-Blade (Included) |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Stripped, Tinned Wire Leads |
| Power (Watts) | 6 W |
| Region Utilized | International |
| Size / Dimension [x] | 1.85 in |
| Size / Dimension [x] | 47 mm |
| Size / Dimension [y] | 1.36 " |
| Size / Dimension [y] | 34.5 mm |
| Size / Dimension [z] | 26.5 mm |
| Size / Dimension [z] | 1.04 in |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.00 | |
Description
General part information
BB-SMI6B-12 Series
12V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Included) Input
Documents
Technical documentation and resources
No documents available
