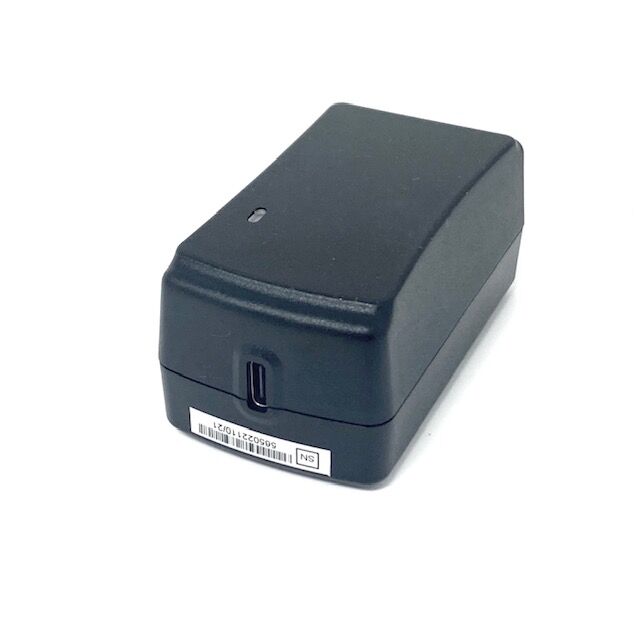

WR9QA3000USBC-IMR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 15W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QA3000USBC-IMR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 15W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QA3000USBC-IMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	PSE, LPS, CB, EAC, CCC, ETL, CE
Current - Output (Max) [Max]	3 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption	100 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	USB C Receptacle
Power (Watts)	15 W
Region Utilized	International
Size / Dimension [x]	74.4 mm
Size / Dimension [x]	2.93 in
Size / Dimension [y]	41 mm
Size / Dimension [y]	1.61 "
Size / Dimension [z]	35.3 mm
Size / Dimension [z]	1.39 in
Standard Number	60601-1, 60335-1, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

WR9QA3000 Series

Part	Region Utilized	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Form	Power (Watts)	Efficiency	Voltage - Output	Approval Agency	Applications	Cord Length	Cord Length	Current - Output (Max) [Max]	Input Type	Polarization	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Output Connector [x]	Output Connector [diameter]	Output Connector	Input Connector	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Cord Length	No Load Power Consumption	Output Connector [z]
GlobTek, Inc. WR9QA3000LLPCIMR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)	Positive Center	90 VAC	264 VAC	75 mW	13.8 mm	2.5 mm 5.5 mm	Barrel Plug	Multi-Blade	-20 C	40 °C
GlobTek, Inc. WR9QA3000USBC3MNA-CIMR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical		3.05 m	3 A	Multi-Blade (Single Blade Included)		90 VAC	264 VAC	75 mW			USB C Receptacle	Multi-Blade (Single Blade Included)	-20 C	40 °C	60335-1 60601-1 60950-1 62368-1	10 ft
GlobTek, Inc. WR9QA3000LCP-IMR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)	Positive Center	90 VAC	264 VAC	75 mW	11 mm	2.5 mm 5.5 mm	Barrel Plug	Multi-Blade	-10 °C	40 °C	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1
GlobTek, Inc. WR9QA3000USBC-CIMR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	Level VI	5 V	CB CE LPS	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)		90 VAC	264 VAC	75 mW			USB C	Multi-Blade	-20 C	40 °C	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1
GlobTek, Inc. WR9QA3000USBC-IMR6B	International	35.3 mm	74.4 mm	2.93 in	41 mm	1.61 "	1.39 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	CB CCC CE EAC ETL LPS PSE	Household Appliances ITE (Commercial) Medical			3 A	Multi-Blade (Sold Separately)		90 VAC	264 VAC				USB C Receptacle	Multi-Blade	0 °C	40 °C	60335-1 60601-1 60950-1 62368-1		100 mW
GlobTek, Inc. WR9QA3000KCP-CIMR6B	International	34 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.34 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)	Positive Center	90 VAC	264 VAC	75 mW	11 mm	1.35 mm 3.5 mm	Barrel Plug	Multi-Blade	-10 °C	40 °C	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1
GlobTek, Inc. WR9QA3000LLPCIMEUR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)	Positive Center	90 VAC	264 VAC	75 mW	13.8 mm	2.5 mm 5.5 mm	Barrel Plug	Multi-Blade	-20 C	40 °C
GlobTek, Inc. WR9QA3000EIAJ1NAIMR6	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical		1.83 m	3 A	Multi-Blade (Sold Separately)	Positive Center	90 VAC	264 VAC	75 mW		0.7 mm 2.35 mm	Barrel Plug	Multi-Blade	-20 C	40 °C		72 in		9.5 mm
GlobTek, Inc. WR9QA3000USBCRCIMR6W	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)		90 VAC	264 VAC	75 mW			USB C Receptacle	Multi-Blade	-20 C	40 °C
GlobTek, Inc. WR9QA3000USBCCEUR6B	International	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Wall Mount (Class II)	15 W	CoC Tier 2 Level VI	5 V	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	1.2 m	47.2 in	3 A	Multi-Blade (Sold Separately)		90 VAC	264 VAC	75 mW			USB C Receptacle	Multi-Blade	-20 C	40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.17
		5	$ 14.56
		10	$ 14.31
		25	$ 13.98
		50	$ 13.74
		120	$ 13.43
		360	$ 13.07
		600	$ 12.90

Description

General part information

WR9QA3000 Series

5V 15 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
