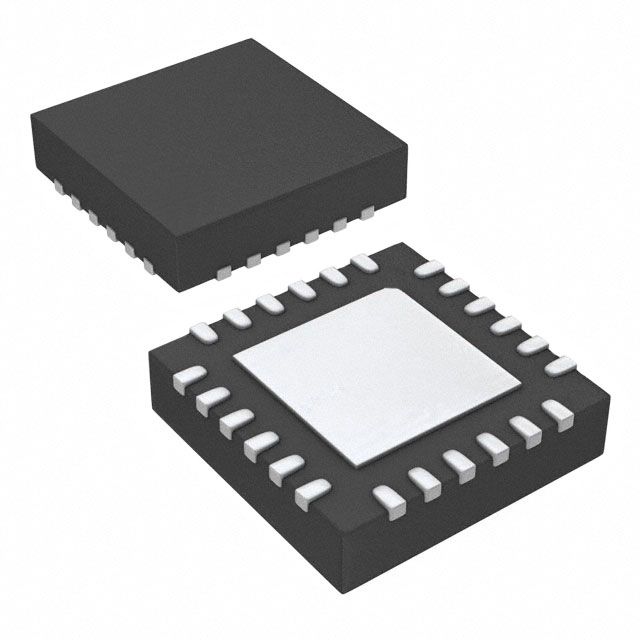

EFM32ZG110F4-QFN24T

Unknown

Silicon Labs

IC MCU 32BIT 4KB FLASH 24QFN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A-00000449 Security Advisory +2

EFM32ZG110F4-QFN24T

Unknown

Silicon Labs

IC MCU 32BIT 4KB FLASH 24QFN

Deep-Dive with AI

DocumentsDatasheet A-00000449 Security Advisory +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EFM32ZG110F4-QFN24T

Connectivity	I2C, UART/USART, SPI, IrDA, EBI/EMI, SmartCard
Core Processor	ARM® Cortex®-M0+
Core Size	32-Bit Single-Core
Data Converters	A/D 2x12b, D/A 1x12b
Mounting Type	Surface Mount
Number of I/O	17
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	24-VQFN Exposed Pad
Peripherals	Brown-out Detect/Reset, DMA, POR, WDT, PWM, I2S
Program Memory Size	4 KB
Program Memory Type	FLASH
RAM Size	2K x 8
Speed	24 MHz
Supplier Device Package	24-QFN (5x5)
Voltage - Supply (Vcc/Vdd) [Max]	3.8 V
Voltage - Supply (Vcc/Vdd) [Min]	1.98 V

zero-gecko Series

Part	Peripherals	Speed	Mounting Type	Package / Case	RAM Size	Core Processor	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Supplier Device Package	Oscillator Type	Data Converters	Program Memory Type	Core Size	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity
Silicon Labs EFM32ZG110F4-B-QFN24R	Brown-out Detect/Reset DMA I2S POR PWM WDT	24 MHz	Surface Mount	24-VQFN Exposed Pad	2K x 8	ARM® Cortex®-M0+	1.98 V	3.8 V	4 KB	24-QFN (5x5)	Internal	A/D 2x12b D/A 1x12b	FLASH	32-Bit Single-Core	17	85 °C	-40 °C	EBI/EMI I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32ZG110F32-B-QFN24R	Brown-out Detect/Reset DMA I2S POR PWM WDT	24 MHz	Surface Mount	24-VQFN Exposed Pad	4K x 8	ARM® Cortex®-M0+	1.98 V	3.8 V	32 KB	24-QFN (5x5)	Internal	A/D 2x12b D/A 1x12b	FLASH	32-Bit Single-Core	17	85 °C	-40 °C	EBI/EMI I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32ZG108F32-QFN24	Brown-out Detect/Reset DMA I2S POR PWM WDT	24 MHz	Surface Mount	24-VQFN Exposed Pad	4K x 8	ARM® Cortex®-M0+	1.98 V	3.8 V	32 KB	24-QFN (5x5)	Internal		FLASH	32-Bit Single-Core	17	85 °C	-40 °C	I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32ZG108F32-QFN24T	Brown-out Detect/Reset DMA I2S POR PWM WDT	24 MHz	Surface Mount	24-VQFN Exposed Pad	4K x 8	ARM® Cortex®-M0+	1.98 V	3.8 V	32 KB	24-QFN (5x5)	Internal		FLASH	32-Bit Single-Core	17	85 °C	-40 °C	I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32ZG108F32-B-QFN24R	Brown-out Detect/Reset DMA I2S POR PWM WDT	24 MHz	Surface Mount	24-VQFN Exposed Pad	4K x 8	ARM® Cortex®-M0+	1.98 V	3.8 V	32 KB	24-QFN (5x5)	Internal		FLASH	32-Bit Single-Core	17	85 °C	-40 °C	I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32ZG110F4-QFN24	Brown-out Detect/Reset DMA I2S POR PWM WDT	24 MHz	Surface Mount	24-VQFN Exposed Pad	2K x 8	ARM® Cortex®-M0+	1.98 V	3.8 V	4 KB	24-QFN (5x5)	Internal	A/D 2x12b D/A 1x12b	FLASH	32-Bit Single-Core	17	85 °C	-40 °C	EBI/EMI I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32ZG110F4-QFN24T	Brown-out Detect/Reset DMA I2S POR PWM WDT	24 MHz	Surface Mount	24-VQFN Exposed Pad	2K x 8	ARM® Cortex®-M0+	1.98 V	3.8 V	4 KB	24-QFN (5x5)	Internal	A/D 2x12b D/A 1x12b	FLASH	32-Bit Single-Core	17	85 °C	-40 °C	EBI/EMI I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32ZG108F16-B-QFN24R	Brown-out Detect/Reset DMA I2S POR PWM WDT	24 MHz	Surface Mount	24-VQFN Exposed Pad	4K x 8	ARM® Cortex®-M0+	1.98 V	3.8 V	16 KB	24-QFN (5x5)	Internal		FLASH	32-Bit Single-Core	17	85 °C	-40 °C	I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32ZG108F8-QFN24T	Brown-out Detect/Reset DMA I2S POR PWM WDT	24 MHz	Surface Mount	24-VQFN Exposed Pad	2K x 8	ARM® Cortex®-M0+	1.98 V	3.8 V		24-QFN (5x5)	Internal		FLASH	32-Bit Single-Core	17	85 °C	-40 °C	I2C IrDA SmartCard SPI UART/USART
Silicon Labs EFM32ZG110F4-B-QFN24	Brown-out Detect/Reset DMA I2S POR PWM WDT	24 MHz	Surface Mount	24-VQFN Exposed Pad	2K x 8	ARM® Cortex®-M0+	1.98 V	3.8 V	4 KB	24-QFN (5x5)	Internal	A/D 2x12b D/A 1x12b	FLASH	32-Bit Single-Core	17	85 °C	-40 °C	EBI/EMI I2C IrDA SmartCard SPI UART/USART

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.91
		10	$ 1.71
		25	$ 1.62
		80	$ 1.38

Description

General part information

zero-gecko Series

ARM® Cortex®-M0+ Zero Gecko Microcontroller IC 32-Bit Single-Core 24MHz 4KB (4K x 8) FLASH 24-QFN (5x5)
