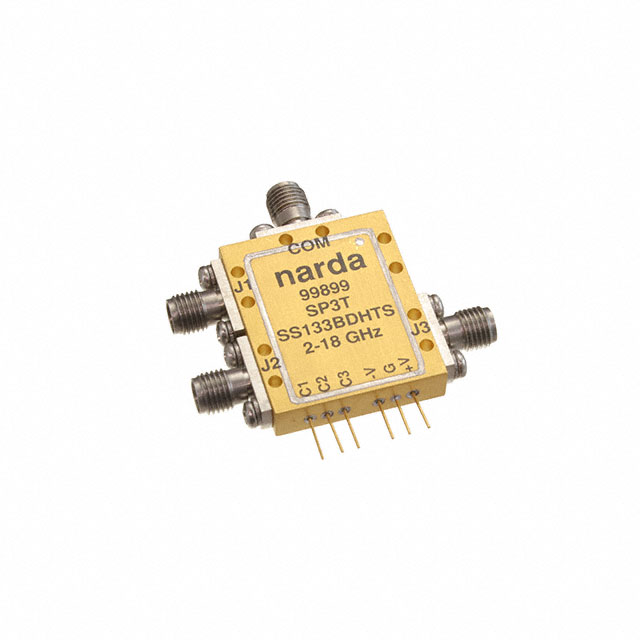

SS133BDHTS
ActiveL3 Narda-MITEQ
IC RF SWITCH SP3T 18GHZ MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SS133BDHTS
ActiveL3 Narda-MITEQ
IC RF SWITCH SP3T 18GHZ MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SS133BDHTS |
|---|---|
| Circuit | SP3T |
| Frequency Range [Max] | 18 GHz |
| Frequency Range [Min] | 2 GHz |
| Insertion Loss | 3.2 dB |
| Isolation | 45 dB |
| Package / Case | Module, SMA Connectors |
| RF Type | General Purpose |
| Supplier Device Package | Module |
| Test Frequency [Max] | 18 GHz |
| Test Frequency [Min] | 16 GHz |
| Topology | Absorptive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SS133 Series
RF Switch IC General Purpose SP3T Module
