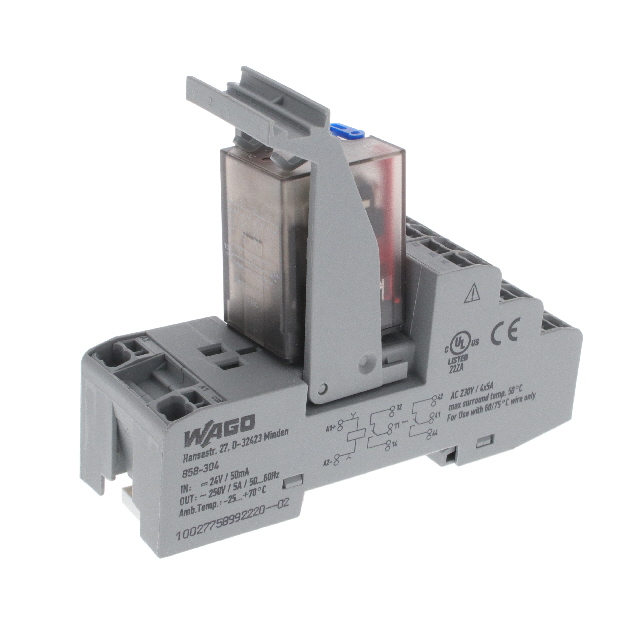

858-304 - 858-304

858-304

Active
WAGO Corporation

POWER RELAY, 4PDT, 24 VDC, 5 A, 858 SERIES, DIN RAIL, DC

Deep-Dive with AI

Search across all available documentation for this part.

858-304 - 858-304

858-304

Active
WAGO Corporation

POWER RELAY, 4PDT, 24 VDC, 5 A, 858 SERIES, DIN RAIL, DC

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification858-304
Coil Current36.9 mA
Coil Resistance650.4 Ohms
Coil TypeNon Latching
Coil Voltage24 VDC
Contact Form4PDT (4 Form C)
Contact MaterialSilver Cerium (AgCe)
Contact Rating (Current)5 A
FeaturesMechanical Indicator, Lighted Indicator
Load - Max Switching [Max]1250 VA
Mounting TypeDIN Rail
Must Operate Voltage19.2 VDC
Operate Time25 ms
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Relay TypeGeneral Purpose
Release Time25 ms
Switching Voltage250 VAC
Termination StyleSpring Terminal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 27.57
10$ 26.19
25$ 24.82
50$ 23.44
100$ 22.06
250$ 20.68
500$ 19.30
LCSCPiece 1$ 1.10
200$ 0.44
500$ 0.43
1000$ 0.42
NewarkEach 1$ 32.77
25$ 31.08
100$ 29.26
250$ 27.57
500$ 25.60

Description

General part information

858 Series

The 858-304 is a Relay Socket with 4PDT AgCe contacts, screw terminal, industrial relay for DIN 35 rail. This 858-series relay sockets are designed for conventional industrial relays with standard pin spacing. The sockets accommodate 33.5 to 35.5mm high relays equipped with 4 changeovers. All socket contacts have two Push-in CAGE CLAMP® termination points for either 2 x 0.34mm² to 1.5mm² or 1 x 2.5mm² cross-sections. Push-in CAGE CLAMP® COMPACT allows direct insertion of solid conductors and ferruled conductors from 20AWG/0.5mm² and larger. Speedy socket service rapidly replaces relays without removing conductors.
