2106-1521-002

Active

Radiall USA, Inc.

SMB / RIGHT ANGLE JACK MALE CRIM

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB / RIGHT ANGLE JACK MALE CRIM

Technical Specifications

Parameters and characteristics for this part

Specification	2106-1521-002

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Male Pin, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.6 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Mating Cycles	Impedance	Connector Type	Frequency - Max [Max]	Center Contact Plating	Center Contact Material	Cable Group	Fastening Type	Dielectric Material	Insertion Loss	Mounting Feature	Shield Termination	Mounting Type	Body Finish	Connector Style	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Contact Termination	Voltage Rating	Number of Ports	Cable Group
Radiall USA, Inc. 2106-1521-019	500	50 Ohms	Jack Male Pin	4 GHz	Gold	Brass	RG-316 Double Braid	Snap-On	Polytetrafluoroethylene (PTFE)	0.6 dB	Bulkhead - Front Side Nut	Crimp	Panel Mount Right Angle	Gold	SMB	Brass	-65 ░C	165 °C	Gold	Crimp	335 V	1
Radiall USA, Inc. 2106-1521-002	500	50 Ohms	Jack Male Pin	4 GHz	Gold	Brass	RG-178	Snap-On	Polytetrafluoroethylene (PTFE)	0.6 dB	Bulkhead - Front Side Nut	Crimp	Panel Mount Right Angle	Gold	SMB	Brass	-65 ░C	165 °C	Gold	Crimp	250 VDC	1	196
Radiall USA, Inc. 2106-1521-003	500	50 Ohms	Jack Male Pin	4 GHz	Gold	Brass	188 316 RG-174	Snap-On	Polytetrafluoroethylene (PTFE)	0.6 dB	Bulkhead - Front Side Nut	Crimp	Panel Mount Right Angle	Gold	SMB	Brass	-65 ░C	165 °C	Gold	Crimp	335 V	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 21.13

General part information

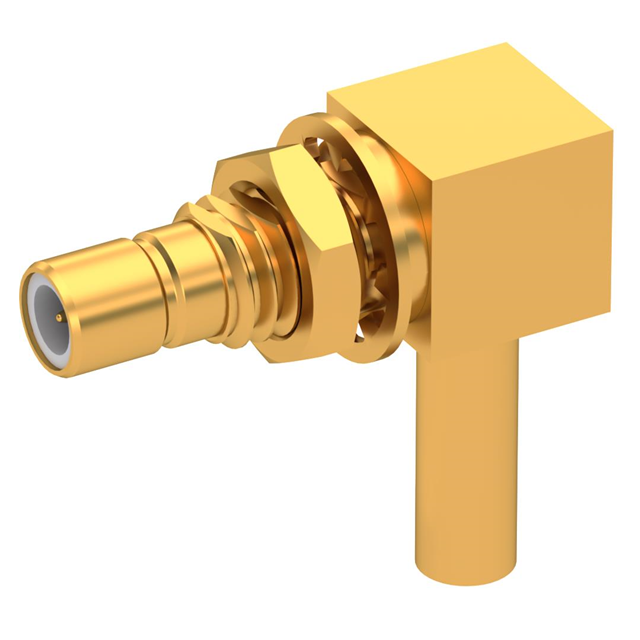

SMB Connector Jack, Male Pin 50 Ohms Panel Mount, Right Angle Crimp

Technical documentation and resources

No documents available
