Technical Specifications
Parameters and characteristics for this part
| Specification | ZXTR2005P5-13 |
|---|---|
| Current - Output | 42 mA |
| Current - Quiescent (Iq) | 0.5 mA |
| Current - Supply (Max) [Max] | 900 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |

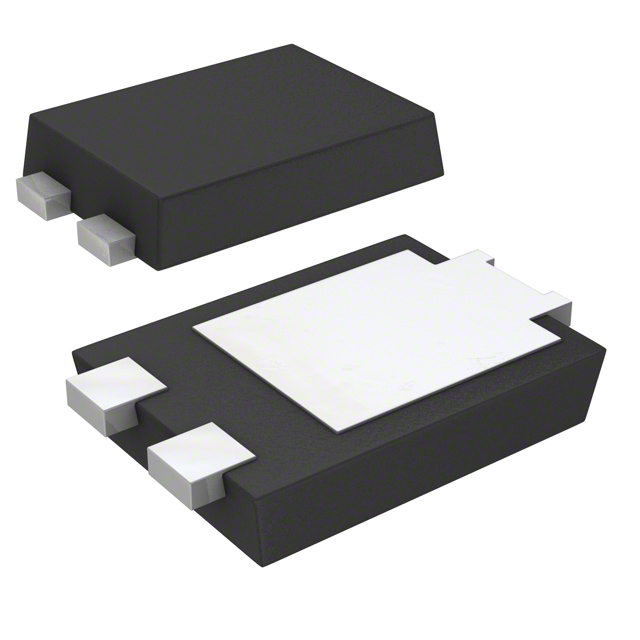

| Package / Case | PowerDI™ 5 |
| PSRR | 45 dB |
| Supplier Device Package | PowerDI™ 5 |
| Voltage - Input (Max) [Max] | 100 V |
| Voltage - Output (Min/Fixed) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.48 | |
| 10 | $ 0.33 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.22 | |||
| 2500 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.48 | ||
| 10 | $ 0.33 | |||
| 25 | $ 0.30 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.23 | |||
| 1000 | $ 0.22 | |||
| 2500 | $ 0.21 | |||
| Tape & Reel (TR) | 5000 | $ 0.20 | ||
| 10000 | $ 0.20 | |||
| 15000 | $ 0.20 | |||
| 25000 | $ 0.19 | |||
| 35000 | $ 0.19 | |||
| 50000 | $ 0.19 | |||
Description
General part information
ZXTR2005P5 Series
The ZXTR2005Z monolithically integrates a transistor, Zener diode and resistor to function as a high voltage linear regulator. The device regulates with a 5V nominal output and delivers up to 30mA. It is designed for use in high voltage applications where standard linear regulators cannot be used. This function is fully integrated into a single SOT89 package, minimizing PCB area and reducing number of components when compared with a multi-chip discrete solution.
Documents
Technical documentation and resources
