07100-48

Active

Mechatronics Bearing Group

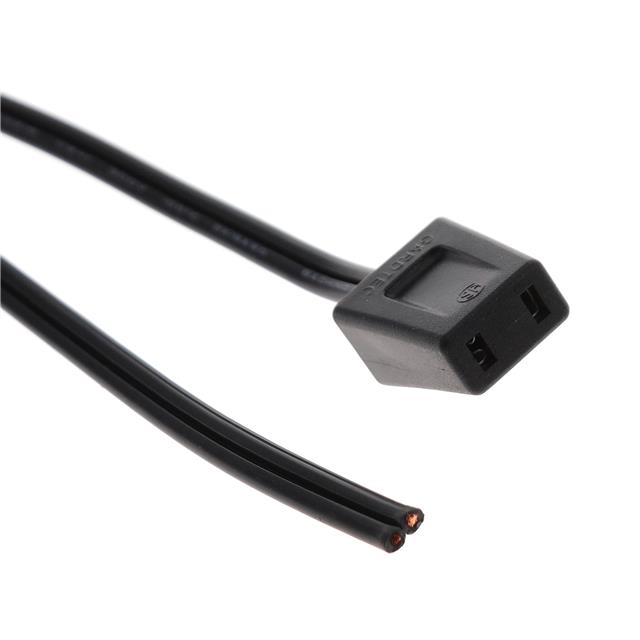

FAN CORD 48"

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN CORD 48"

Technical Specifications

Parameters and characteristics for this part

Specification	07100-48

1st Connector	Fan Terminal Receptacle 180°, Straight
2nd Connector	Open Wires
Fits Terminal Size [x]	4.1
Fits Terminal Size [y]	0.5
Number of Conductors	2
Operating Temperature	105 C
Style	Female Receptacle to Cable
Wire Gauge	18 AWG

Part	Operating Temperature	Wire Gauge	1st Connector	Length [x]	Length [x]	Style	2nd Connector	Number of Conductors	Fits Terminal Size [x]	Fits Terminal Size [y]	Length	Length
Mechatronics Bearing Group 07100-24	105 C	18 AWG	Fan Terminal Receptacle 180° Straight	609.6 mm	24 in	Female Receptacle to Cable	Open Wires	2	4.1	0.5
Mechatronics Bearing Group 07100-60	105 C	18 AWG	Fan Terminal Receptacle 180° Straight			Female Receptacle to Cable	Open Wires	2	4.1	0.5	5 '	1.52 m
Mechatronics Bearing Group 07100-48	105 C	18 AWG	Fan Terminal Receptacle 180° Straight			Female Receptacle to Cable	Open Wires	2	4.1	0.5
Mechatronics Bearing Group 07100-36P	105 C	18 AWG	Fan Terminal Receptacle 180° Straight			Female Receptacle to Male Plug	NEMA 1-15 Plug	2	4.1	0.5	36 in	91.44 cm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Power Cord Fan Terminal Receptacle 180°, Straight 48.0" (1.22m) Open Wires
