RGZ-0905D

Active

RECOM Power

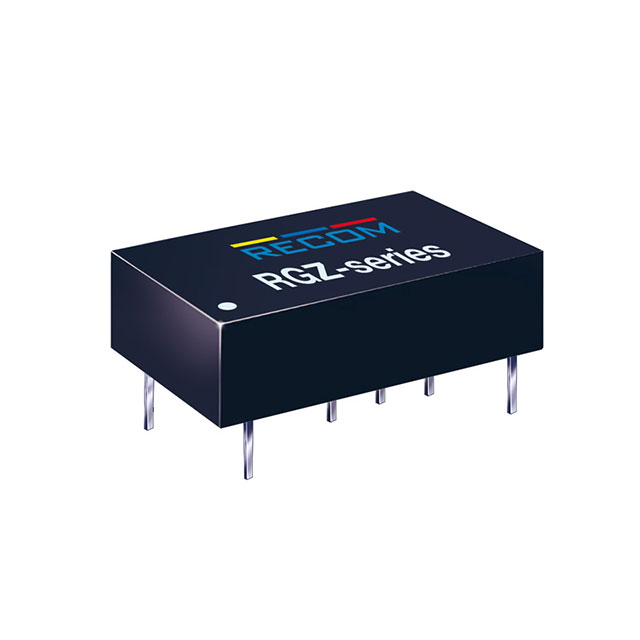

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 3KV UNREG 9VIN +/-5VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RGZ-0905D

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 2W DC/DC 3KV UNREG 9VIN +/-5VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RGZ-0905D

Applications	ITE (Commercial), Medical
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	14-DIP Module, 6 Leads
Power (Watts)	2 W
Size / Dimension [x]	19.7 mm
Size / Dimension [x]	0.78 "
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.39 "
Size / Dimension [z]	7.1 mm
Size / Dimension [z]	0.28 "
Type	Isolated Module
Voltage - Input (Max) [Max]	9.9 V
Voltage - Input (Min) [Min]	8.1 V
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

RGZ-3.33.3 Series

Isolated DC/DC Converters - Through Hole 2W DC/DC 3kV UNREG 24Vin +/-12Vout

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Number of Outputs	Power (Watts)	Type	Mounting Type	Voltage - Input (Min) [Min]	Current - Output (Max)	Current - Output (Max)	Voltage - Input (Max) [Max]	Voltage - Output 2	Voltage - Output 1	Voltage - Isolation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Efficiency	Current - Output (Max)
RECOM Power RGZ-1512D	7.1 mm	19.7 mm	10 mm	0.39 "	0.78 "	0.28 "	ITE (Commercial) Medical	2	2 W	Isolated Module	Through Hole	13.5 V	84 mA	84 mA	16.5 V	-12 V	12 V	3000 V	SCP	85 °C	-40 °C	14-DIP Module 6 Leads
RECOM Power RGZ-2424D/H	7.1 mm	19.7 mm	10 mm	0.39 "	0.78 "	0.28 "	ITE (Commercial) Medical	2	2 W	Isolated Module	Through Hole	21.6 V			26.4 V	-24 V	24 V	4000 V	SCP	85 °C	-40 °C	14-DIP Module 6 Leads	42 mA	42 mA	84 %
RECOM Power RGZ-3.305D/HP	7.1 mm	19.7 mm	10 mm	0.39 "	0.78 "	0.28 "	ITE (Commercial) Medical	2	2 W	Isolated Module	Through Hole	3 V			3.6 V	-5 V	5 V	4000 V	SCP	85 °C	-40 °C	14-DIP Module 6 Leads
RECOM Power RGZ-0905D	7.1 mm	19.7 mm	10 mm	0.39 "	0.78 "	0.28 "	ITE (Commercial) Medical	2	2 W	Isolated Module	Through Hole	8.1 V			9.9 V	-5 V	5 V	3000 V	SCP	85 °C	-40 °C	14-DIP Module 6 Leads
RECOM Power RGZ-1215D/P	7.1 mm	19.7 mm	10 mm	0.39 "	0.78 "	0.28 "	ITE (Commercial) Medical	2	2 W	Isolated Module	Through Hole	10.8 V			13.2 V	-15 V	15 V	3000 V	SCP	85 °C	-40 °C	14-DIP Module 6 Leads			84 %	66 mA
RECOM Power RGZ-2405D/P	7.1 mm	19.7 mm	10 mm	0.39 "	0.78 "	0.28 "	ITE (Commercial) Medical	2	2 W	Isolated Module	Through Hole	21.6 V			26.4 V	-5 V	5 V	3000 V	SCP	85 °C	-40 °C	14-DIP Module 6 Leads
RECOM Power RGZ-1512D/HP	7.1 mm	19.7 mm	10 mm	0.39 "	0.78 "	0.28 "	ITE (Commercial) Medical	2	2 W	Isolated Module	Through Hole	13.5 V	84 mA	84 mA	16.5 V	-12 V	12 V	4000 V	SCP	85 °C	-40 °C	14-DIP Module 6 Leads
RECOM Power RGZ-123.3D/HP	7.1 mm	19.7 mm	10 mm	0.39 "	0.78 "	0.28 "	ITE (Commercial) Medical	2	2 W	Isolated Module	Through Hole	10.8 V	303 mA		13.2 V	-3.3 V	3.3 V	4000 V	SCP	85 °C	-40 °C	14-DIP Module 6 Leads			75 %	303 mA
RECOM Power RGZ-3.305D	7.1 mm	19.7 mm	10 mm	0.39 "	0.78 "	0.28 "	ITE (Commercial) Medical	2	2 W	Isolated Module	Through Hole	3 V			3.6 V	-5 V	5 V	3000 V	SCP	85 °C	-40 °C	14-DIP Module 6 Leads
RECOM Power RGZ-241509D/H	7.1 mm	19.7 mm	10 mm	0.39 "	0.78 "	0.28 "	ITE (Commercial)	2	2 W	Isolated Module	Through Hole	21.6 V			26.4 V	-9 V	15 V	4000 V	SCP	85 °C	-40 °C	14-DIP Module 6 Leads				66 mA 111 mA
