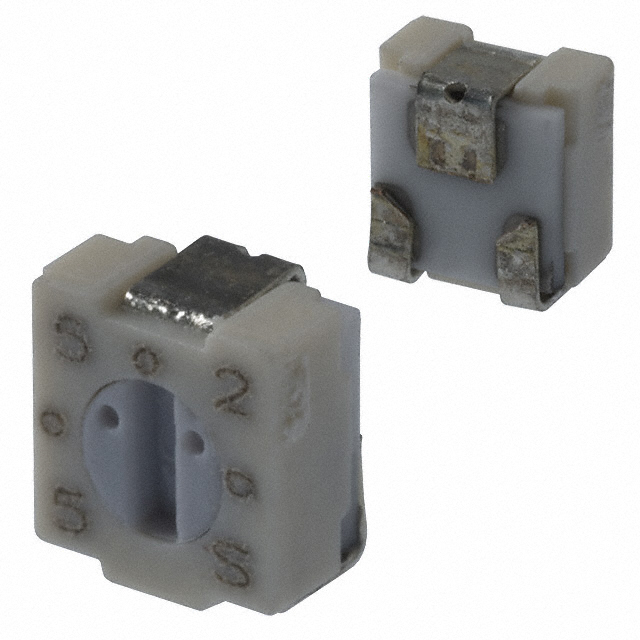

3313J-2-202E
ActiveBourns Inc.
TRIMMER, SINGLE TURN, CERMET, TOP ADJUST, 2 KOHM, SURFACE MOUNT, 1 TURNS
Deep-Dive with AI
Search across all available documentation for this part.
3313J-2-202E
ActiveBourns Inc.
TRIMMER, SINGLE TURN, CERMET, TOP ADJUST, 2 KOHM, SURFACE MOUNT, 1 TURNS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3313J-2-202E |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Power (Watts) | 0.125 W |
| Power (Watts) | 0.125 W |
| Resistance | 2 kOhms |
| Resistive Material | Cermet |
| Size / Dimension [x] | 0.138 in |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 in |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | J Lead |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.83 | |
| 10 | $ 1.61 | |||
| 25 | $ 1.44 | |||
| 50 | $ 1.39 | |||
| 100 | $ 1.33 | |||
| 250 | $ 1.28 | |||
| 500 | $ 1.06 | |||
| Digi-Reel® | 1 | $ 1.83 | ||
| 10 | $ 1.61 | |||
| 25 | $ 1.44 | |||
| 50 | $ 1.39 | |||
| 100 | $ 1.33 | |||
| 250 | $ 1.28 | |||
| 500 | $ 1.06 | |||
| Tape & Reel (TR) | 1000 | $ 1.00 | ||
| 2000 | $ 0.86 | |||
| 5000 | $ 0.83 | |||
| 10000 | $ 0.78 | |||
| Newark | Each (Supplied on Full Reel) | 1000 | $ 0.89 | |
| 2000 | $ 0.84 | |||
| 4000 | $ 0.76 | |||
| 6000 | $ 0.73 | |||
| 10000 | $ 0.70 | |||
Description
General part information
3313J Series
2 kOhms 0.125W, 1/8W J Lead Surface Mount Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
