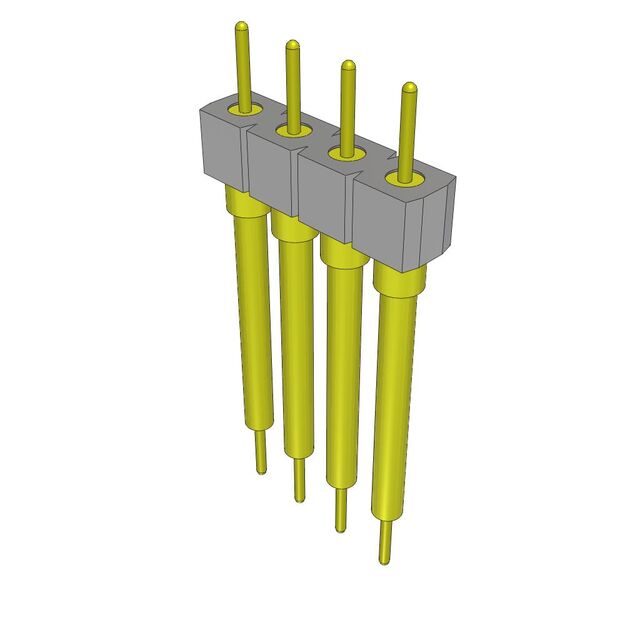

BBS-104-T-C

Active

Samtec Inc.

CONN HEADER VERT 4POS 2.54MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER VERT 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	BBS-104-T-C

Connector Type	Header
Contact Finish - Post	Nickel
Contact Finish Thickness - Post	1.27 µm
Contact Finish Thickness - Post	50 µin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post [x]	3.18 mm
Contact Length - Post [x]	0.125 in
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.585 in
Insulation Height	14.86 mm
Insulation Material	Polyester, Glass Filled
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.835 in
Overall Contact Length	21.21 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

Part	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Post	Termination	Contact Type	Insulation Height	Insulation Height	Number of Positions Loaded	Number of Positions	Number of Rows	Fastening Type	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Contact Shape	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Overall Contact Length
Samtec Inc. BBS-104-G-C	0.1 in	2.54 mm	Polyester Glass Filled	Nickel	Solder	Male Pin	0.585 in	14.86 mm	All	4	1	Push-Pull	Black	1.27 µm	50 µin	Header	-55 °C	125 °C	0.125 in	3.18 mm	Through Hole	3.18 mm	0.125 in	Gold	Circular	0.835 in	21.21 mm	0.51 µm	20 µin	Unshrouded
Samtec Inc. BBS-104-T-B	0.1 in	2.54 mm	Polyester Glass Filled	Nickel	Solder	Male Pin	0.335 "	8.51 mm	All	4	1	Push-Pull	Black	1.27 µm	50 µin	Header	-55 °C	125 °C	0.125 in	3.18 mm	Through Hole	3.18 mm	0.125 in		Circular		0.585 in			Unshrouded	14.86 mm
Samtec Inc. BBS-104-T-C	0.1 in	2.54 mm	Polyester Glass Filled	Nickel	Solder	Male Pin	0.585 in	14.86 mm	All	4	1	Push-Pull	Black	1.27 µm	50 µin	Header	-55 °C	125 °C	0.125 in	3.18 mm	Through Hole	3.18 mm	0.125 in		Circular	0.835 in	21.21 mm			Unshrouded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	56	$ 1.21

General part information

Connector Header Through Hole 4 position 0.100" (2.54mm)
