1673698

Obsolete

Phoenix Contact

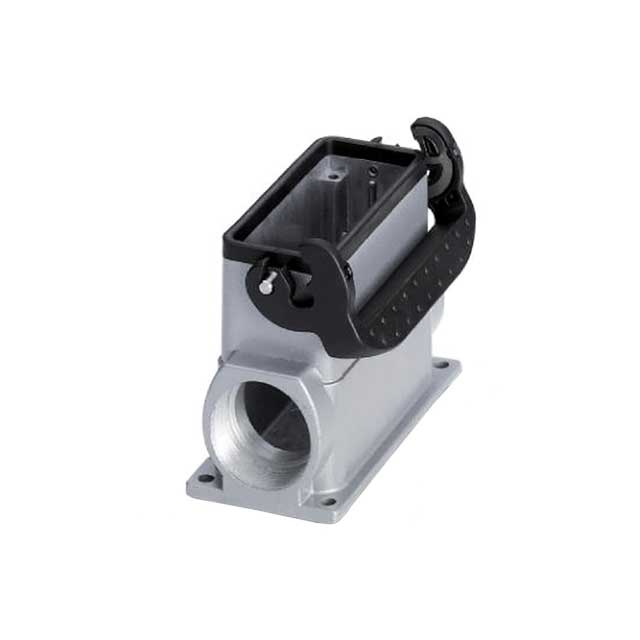

HEAVY DUTY POWER CONNECTORS HC-B 16-SML-67/ O1PG21

Search across all available documentation for this part.

Obsolete

Phoenix Contact

HEAVY DUTY POWER CONNECTORS HC-B 16-SML-67/ O1PG21

Technical Specifications

Parameters and characteristics for this part

Specification	1673698

Connector Type	Base - Box Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	B16
Size / Dimension [x]	4.606 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	57 mm
Size / Dimension [y]	2.244 "
Size / Dimension [z]	67 mm
Size / Dimension [z]	2.638 "
Style	Side Entry
Thread Size	PG21

Heavy Duty Power Connectors HC-B 16-SML-67/ O1PG21

Part	Lock Location	Style	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Thread Size	Size	Housing Color	Housing Material	Ingress Protection	Connector Type	Housing Finish
Phoenix Contact 1673698	Locking Clip (1) on Base Bottom	Side Entry	125 °C	-40 °C	4.606 "	67 mm	57 mm	117 mm	2.244 "	2.638 "	PG21	B16	Gray	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	Base - Box Mount	Powder Coated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heavy Duty Power Connectors HC-B 16-SML-67/ O1PG21

Technical documentation and resources
