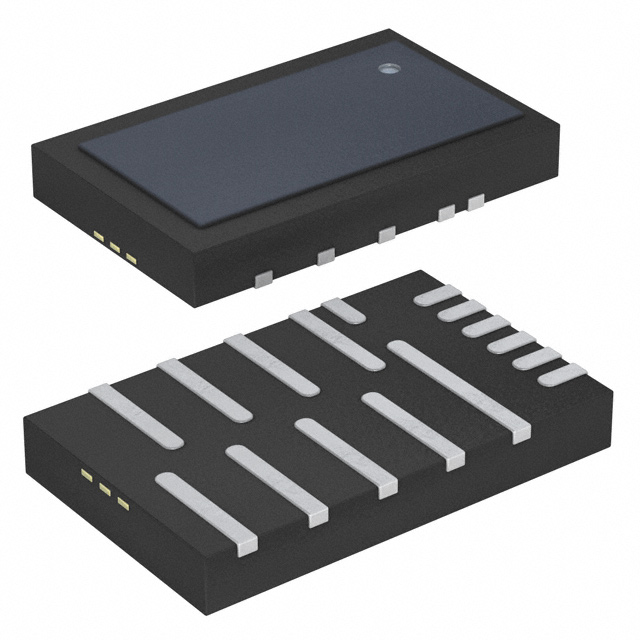

VT1697SBFQX+CN9

Obsolete

Analog Devices Inc./Maxim Integrated

IC HALF BRIDGE DRIVER 100A 16QFN

Search across all available documentation for this part.

Obsolete

Analog Devices Inc./Maxim Integrated

IC HALF BRIDGE DRIVER 100A 16QFN

Technical Specifications

Parameters and characteristics for this part

Specification	VT1697SBFQX+CN9

Applications	General Purpose
Current - Output / Channel	100 A
Current - Peak Output	55 A
Fault Protection	Over Current, Over Temperature, Current Limiting, Short Circuit, UVLO
Features	Diode Emulation
Interface	Logic, Analog, PWM
Load Type	Capacitive, Inductive
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	16-VFQFN
Supplier Device Package	16-FCQFN (6x3.75)
Voltage - Load [Max]	14 V
Voltage - Load [Min]	8.5 V
Voltage - Supply [Max]	14 V
Voltage - Supply [Min]	8.5 V

Part	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Load Type	Package / Case	Mounting Type	Applications	Voltage - Load [Min]	Voltage - Load [Max]	Fault Protection	Current - Peak Output	Interface	Features	Current - Output / Channel	Supplier Device Package [x]	Supplier Device Package [y]
Analog Devices Inc./Maxim Integrated VT1697SCFQX	16-FCQFN (6x3.75)	1.71 V	1.98 V	-40 °C	125 ¯C	Power MOSFET	Inductive	16-VFQFN	Surface Mount	General Purpose	8.5 V	14 V	Current Limiting Over Temperature Short Circuit UVLO	55 A	PWM	Diode Emulation Status Flag
Analog Devices Inc./Maxim Integrated VT1697SBFQX	16-FCQFN (6x3.75)	1.71 V	1.98 V	-40 °C	125 ¯C	Power MOSFET	Inductive	16-VFQFN	Surface Mount	General Purpose	8.5 V	14 V	Current Limiting Over Temperature Short Circuit UVLO	55 A	PWM	Diode Emulation Status Flag
Analog Devices Inc./Maxim Integrated VT1697SBFQX+CN9	16-FCQFN (6x3.75)	8.5 V	14 V	-40 °C	125 ¯C		Capacitive Inductive	16-VFQFN	Surface Mount	General Purpose	8.5 V	14 V	Current Limiting Over Current Over Temperature Short Circuit UVLO	55 A	Analog Logic PWM	Diode Emulation	100 A
Analog Devices Inc./Maxim Integrated VT1697SBFQX+CNR
Analog Devices Inc./Maxim Integrated VT1697SCFQ
Analog Devices Inc./Maxim Integrated VT1697SBFQ	16-QFN	1.71 V	1.98 V	-40 °C	125 ¯C	Power MOSFET	Inductive	16-VFQFN	Surface Mount	General Purpose	8.5 V	14 V	Current Limiting Over Temperature Short Circuit UVLO	55 A	PWM	Diode Emulation Status Flag		6	3.75

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Half Bridge Driver General Purpose 16-FCQFN (6x3.75)
