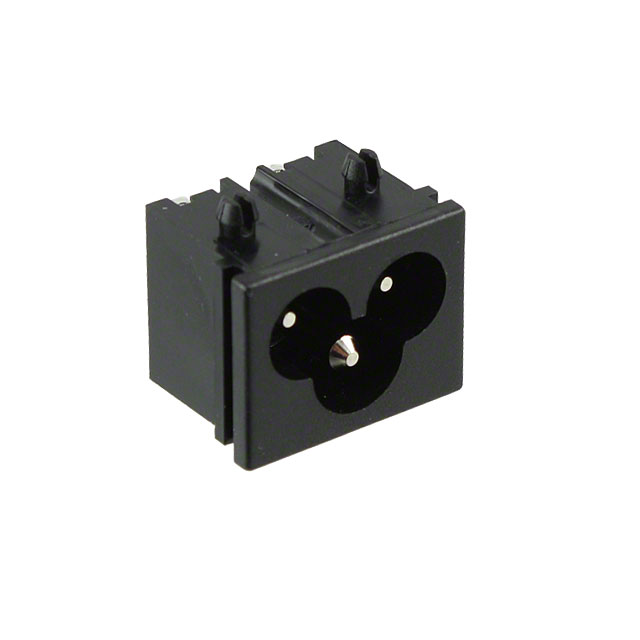

771W-CX2/01
ActiveQualtek
PWR ENT RCPT IEC320-C6 PNL SLDR
Deep-Dive with AI
Search across all available documentation for this part.
771W-CX2/01
ActiveQualtek
PWR ENT RCPT IEC320-C6 PNL SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 771W-CX2/01 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C6 |
| Connector Type | Receptacle, Male Pins |
| Current Rating - Appliance Inlet | 2.5 A |
| Filter Type | Unfiltered - Commercial |
| Mounting Type | Panel Mount, Snap-In |
| Panel Thickness [Max] | 1.5 mm |
| Panel Thickness [Max] | 0.059 in |
| Panel Thickness [Min] | 0.6 mm |
| Panel Thickness [Min] | 0.024 in |
| Termination | Solder Eyelet |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.54 | |
| 10 | $ 1.30 | |||
| 25 | $ 1.22 | |||
| 50 | $ 1.16 | |||
| 100 | $ 1.11 | |||
| 300 | $ 1.03 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.94 | |||
| 2500 | $ 0.88 | |||
Description
General part information
771W-CX2 Series
Power Entry Connector Receptacle, Male Pins IEC 320-C6 Panel Mount, Snap-In
