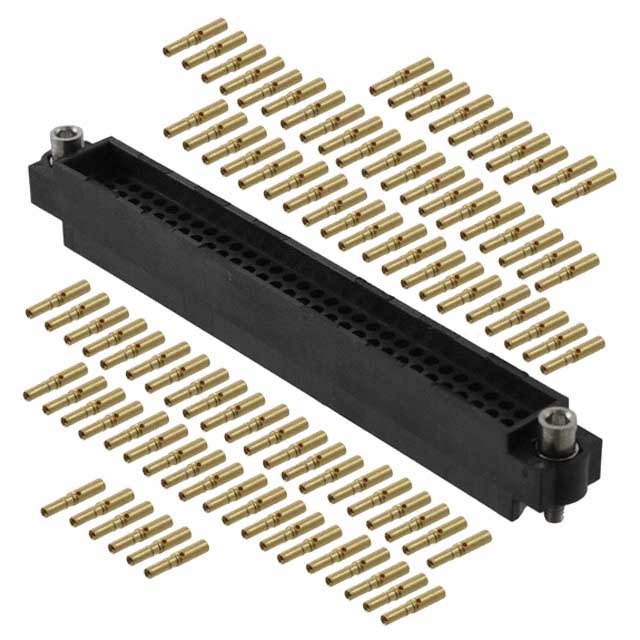

M83-LFD1F1N96-0000-000

Active

Harwin Inc.

BOARD CONNECTOR, 96 CONTACT(S), 3 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, M2X0.4, BLACK INSULATOR, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Harwin Inc.

BOARD CONNECTOR, 96 CONTACT(S), 3 ROW(S), FEMALE, 0.079 INCH PITCH, CRIMP TERMINAL, M2X0.4, BLACK INSULATOR, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Contact Finish	Number of Positions	Wire Gauge	Row Spacing	Row Spacing	Connector Type	Wire Type	Color	Pitch [x]	Pitch [x]	Features	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Mounting Type	Number of Rows
Harwin Inc. M83-LFD1F2N27-0000-000	Crimp	Gold	27	22 AWG	2 mm	0.079 in	Receptacle	Discrete	Black	0.079 in	2 mm	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	3
Harwin Inc. M83-LFD1F1N60-0000-000	Crimp	Gold	60	22 AWG	2 mm	0.079 in	Receptacle	Discrete	Black	0.079 in	2 mm	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	3
Harwin Inc. M83-LFD1F1N96-0000-000	Crimp	Gold	96	22 AWG	2 mm	0.079 in	Receptacle	Discrete	Black	0.079 in	2 mm	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	3
Harwin Inc. M83-LFD1F2N18-0000-000	Crimp	Gold	18	22 AWG	2 mm	0.079 in	Receptacle	Discrete	Black	0.079 in	2 mm	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	3
Harwin Inc. M83-LFD1F2N60-0000-000	Crimp	Gold	60	22 AWG	2 mm	0.079 in	Receptacle	Discrete	Black	0.079 in	2 mm	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	3
Harwin Inc. M83-LFD1F2N72-0000-000	Crimp	Gold	72	22 AWG	2 mm	0.079 in	Receptacle	Discrete	Black	0.079 in	2 mm	Jackscrews	0.3 Ám	11.8 Áin	Female Socket	Free Hanging (In-Line)	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

96 Position Rectangular Receptacle Connector Crimp Gold 22 AWG
