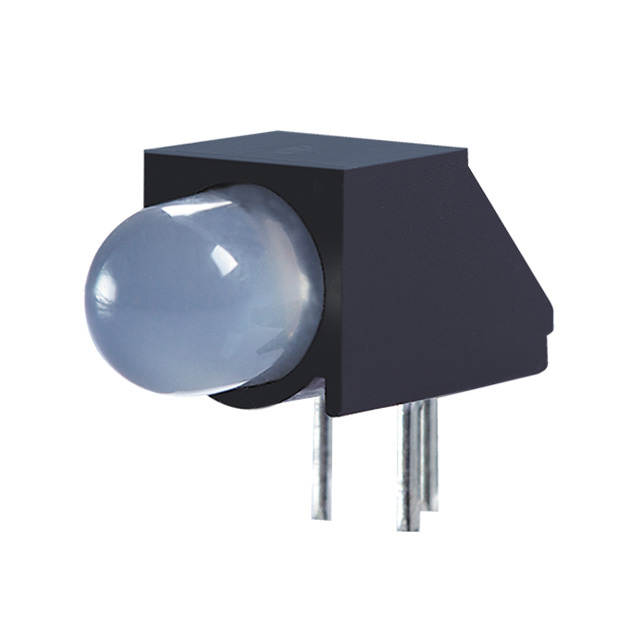

WP150A9VS/EGW

Active

Kingbright

LED CBI 5MM GRN/RED RA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP150A9VS/EGW

Active

Kingbright

LED CBI 5MM GRN/RED RA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP150A9VS/EGW

Color	Red, Green
Configuration	Single
Current	25 mA, 30 mA
Lens Size	T-1 3/4
Lens Size	5 mm
Lens Style	Round with Domed Top
Lens Type	Diffused, White
Millicandela Rating [custom]	50 mcd
Millicandela Rating [custom]	30 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	30 °
Voltage Rating	2.2 V, 2 V
Wavelength - Peak [custom]	565 nm, 627 nm

WP150 Series

Part	Lens Style	Lens Size	Lens Size	Current	Voltage Rating	Configuration	Lens Type	Color	Mounting Type	Millicandela Rating [custom]	Millicandela Rating [custom]	Viewing Angle	Wavelength - Peak [custom]
Kingbright WP150A9VS/EGW	Round with Domed Top	T-1 3/4	5 mm	25 mA 30 mA	2 V 2.2 V	Single	Diffused White	Green Red	Through Hole Right Angle	50 mcd	30 mcd	30 °	565 nm 627 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.17
		10	$ 0.74
		100	$ 0.55
		1000	$ 0.41
		5000	$ 0.38
		10000	$ 0.38

Description

General part information

WP150 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Green, Red Diffused, White 2.2V Green, 2V Red 25mA Green, 30mA Red Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
