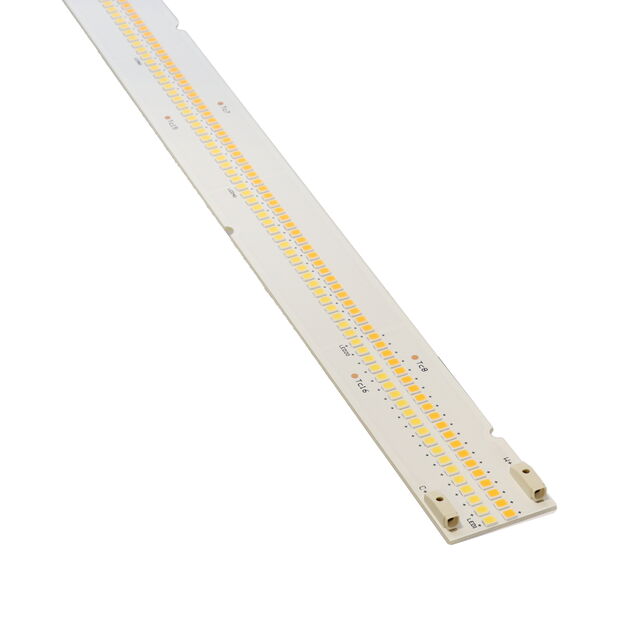

BXEB-TL-L1120Z-2750S4000-A-C3

Active

BRIDGELUX

CHIP ON BOARD (COB) LIGHT SOURCES ROHS

Search across all available documentation for this part.

Active

BRIDGELUX

CHIP ON BOARD (COB) LIGHT SOURCES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	BXEB-TL-L1120Z-2750S4000-A-C3

CCT (K)	5000 K, 2700 K
Color	White, Cool, White, Warm
Configuration	Linear Light Strip
CRI (Color Rendering Index)	98
Current - Max [Max]	2 A
Current - Test	1.2 A
Height [z]	5.6 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	138 lm/W, 122 lm/W
Luminous Flux @ Current/Temperature	5920 lm, 6720 lm
Size / Dimension [x]	1120 mm
Size / Dimension [y]	31 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	40.6 V

Part	Color	Height [z]	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Lens Type	Voltage - Forward (Vf) (Typ)	Viewing Angle	Current - Max [Max]	Luminous Flux @ Current/Temperature	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Configuration	Current - Test	Type
BRIDGELUX BXEB-TL-L1120Z-2750S4000-A-C3	White Cool White Warm	5.6 mm	98	122 lm/W 138 lm/W	Flat	40.6 V	120 °	2 A	5920 lm 6720 lm	2700 K 5000 K	31 mm	1120 mm	Linear Light Strip	1.2 A	LED Module
BRIDGELUX BXEB-TL-L1120Z-2750E4000-B-C3	White Cool White Warm	5.6 mm	80		Flat	39.4 V	120 °	1.5 A	4876 lm 5447 lm	2700 K 5000 K	24 mm	1120 mm	Linear Light Strip	750 mA	LED Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module Vesta™ Tunable Linear Gen 3 White, Warm / White, Cool Linear Light Strip
