WR9QH2100LCPNNAR6B

Active

GlobTek, Inc.

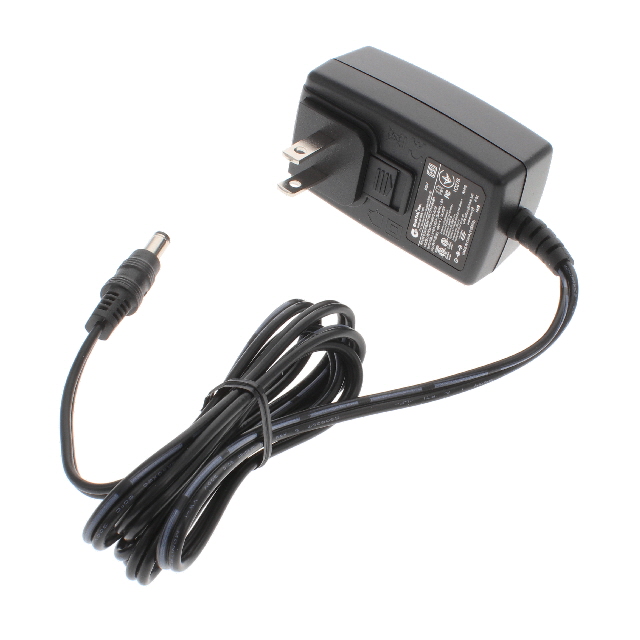

AC/DC WALL MOUNT ADAPTER 19V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QH2100LCPNNAR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 19V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QH2100LCPNNAR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	UL, cETLus, VCCI, ETL, UKRSepro, CE, CB, PSE, CCC, FCC, LPS, EAC, RCM
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	2.1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade (Single Blade Included)
Input Type	Multi-Blade (Single Blade Included)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	40 W
Region Utilized	International
Size / Dimension [x]	43.5 mm
Size / Dimension [x]	1.71 "
Size / Dimension [y]	2.91 "
Size / Dimension [y]	74 mm
Size / Dimension [z]	1.39 in
Size / Dimension [z]	35.3 mm
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	19 V

WR9QH2100 Series

Part	Form	Cord Length	Cord Length	Polarization	Input Connector	Input Type	Output Connector	Output Connector [diameter]	Output Connector [z]	Approval Agency	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output	Standard Number	No Load Power Consumption [Max]	Current - Output (Max) [Max]	Applications	Region Utilized	Operating Temperature [Max]	Efficiency	Output Connector [x]
GlobTek, Inc. WR9QH2100CCPN(R6B)	Wall Mount (Class II)	1.2 m	47.2 in	Positive Center	Multi-Blade	Multi-Blade (Sold Separately)	Barrel Plug	2.1 mm 5.5 mm	11 mm	BIS CB CCC CE cETLus EAC ETL FCC LPS Morocco PSE RCM UKCA UKRSepro UL VCCI	40 W	90 VAC	264 VAC	2.91 "	43.5 mm	1.39 in	74 mm	35.3 mm	1.71 "	19 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	75 mW	2.1 A	Household Appliances ITE (Commercial) Medical	International	40 °C	Level VI
GlobTek, Inc. WR9QH2100LCPNNAR6B	Wall Mount (Class II)	1.2 m	47.2 in	Positive Center	Multi-Blade (Single Blade Included)	Multi-Blade (Single Blade Included)	Barrel Plug	2.5 mm 5.5 mm		CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	40 W	90 VAC	264 VAC	2.91 "	43.5 mm	1.39 in	74 mm	35.3 mm	1.71 "	19 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	75 mW	2.1 A	Household Appliances ITE (Commercial) Medical	International	40 °C	Level VI	11 mm
GlobTek, Inc. WR9QH2100CCPNNAR6B	Wall Mount (Class II)	1.2 m	47.2 in	Positive Center	Multi-Blade	Multi-Blade (Sold Separately)	Barrel Plug	2.1 mm 5.5 mm	11 mm	CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	40 W	90 VAC	264 VAC	2.91 "	43.5 mm	1.39 in	74 mm	35.3 mm	1.71 "	19 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	75 mW	2.1 A	Household Appliances ITE (Commercial) Medical	International	40 °C	Level VI
GlobTek, Inc. WR9QH2100LCPN(R6B)	Wall Mount (Class II)	1.2 m	47.2 in	Positive Center	Multi-Blade	Multi-Blade (Sold Separately)	Barrel Plug	2.5 mm 5.5 mm		CB CCC CE cETLus EAC ETL FCC LPS PSE RCM UKRSepro UL VCCI	40 W	90 VAC	264 VAC	2.91 "	43.5 mm	1.39 in	74 mm	35.3 mm	1.71 "	19 V	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	75 mW	2.1 A	Household Appliances ITE (Commercial) Medical	International	40 °C	Level VI	11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.50
		5	$ 18.00
		10	$ 17.00
		25	$ 16.00
		60	$ 15.00
		120	$ 14.00
		300	$ 13.50
		540	$ 13.30

Description

General part information

WR9QH2100 Series

19V 40 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Single Blade Included) Input
