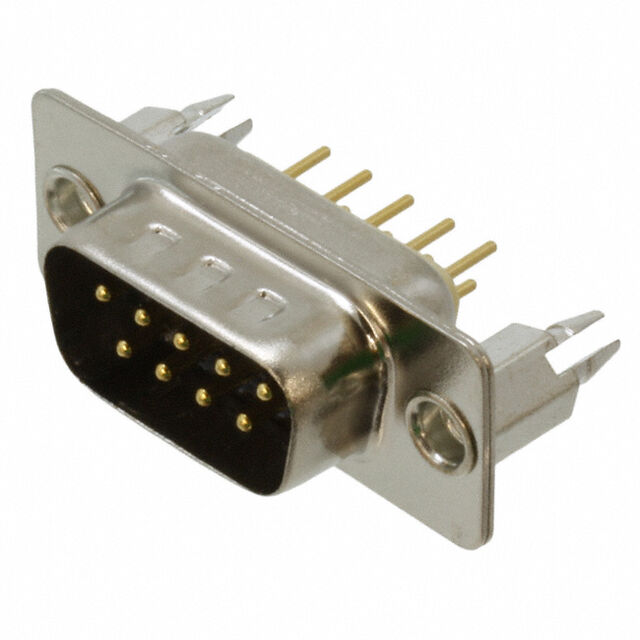

772-E09-113R051 - 772-E09-113R051

772-E09-113R051

Active
MH Connectors

D SUB CONNECTOR, DB9, IP68, STANDARD, PLUG, SEAL-D 772-E SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetSeal-D® Brochure+3
772-E09-113R051 - 772-E09-113R051

772-E09-113R051

Active
MH Connectors

D SUB CONNECTOR, DB9, IP68, STANDARD, PLUG, SEAL-D 772-E SERIES, 9 CONTACTS, DE, SOLDER

Deep-Dive with AI

DocumentsDatasheetSeal-D® Brochure+3

Technical Specifications

Parameters and characteristics for this part

Specification772-E09-113R051
ColorWhite
Connector StyleD-Sub
Connector TypePlug, Male Pins
Contact FinishGold
Contact Finish ThicknessFlash
Contact MaterialBrass
Contact TypeSignal
Current Rating (Amps)5 A
Dielectric MaterialPolyamide (PA6T), Nylon 6T
FeaturesGrounding Indents, Board Lock
Flange FeatureBoard Side, 4-40
Ingress ProtectionIP67 - Dust Tight, Waterproof
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Panel Mount
Number of Positions9
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Shell Material, FinishNickel Plated, Steel
Shell Size, Connector Layout [custom]DE, E
Shell Size, Connector Layout [custom]1
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 8.13
10$ 7.32
25$ 6.89
40$ 6.72
80$ 6.54
240$ 5.83
480$ 5.48
960$ 4.84
NewarkEach 50$ 5.49
100$ 5.18
250$ 4.91

Description

General part information

772-E09 Series

9 Position D-Sub Plug, Male Pins Connector
