HRM-554S(40)
ActiveHirose Electric USA, Inc.

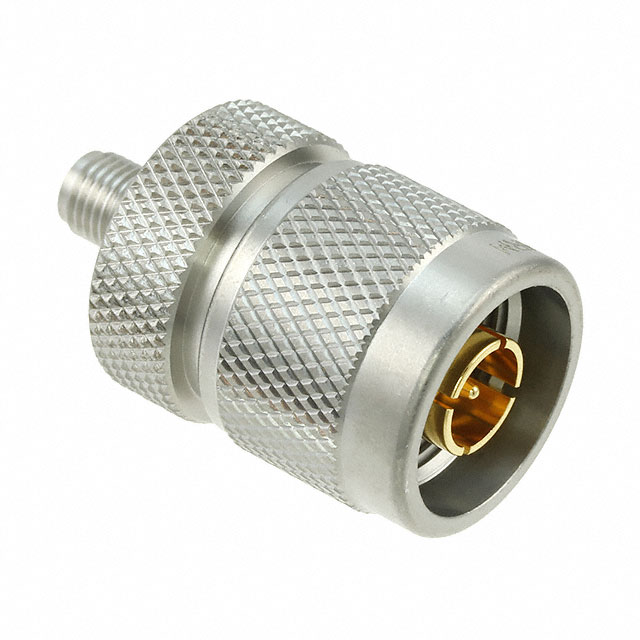

CONN ADAPT SMA JACK TO N PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HRM-554S(40)
ActiveHirose Electric USA, Inc.
CONN ADAPT SMA JACK TO N PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HRM-554S(40) |
|---|---|
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Female Socket, SMA Jack |
| Convert To (Adapter End) | Male Pin, N Plug |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 1000 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 77.85 | |
| 10 | $ 60.47 | |||
| 25 | $ 54.96 | |||
| 50 | $ 51.25 | |||
| 100 | $ 47.89 | |||
Description
General part information
HRM-554 Series
Adapter Coaxial Connector SMA Jack, Female Socket To N Plug, Male Pin 50 Ohms
