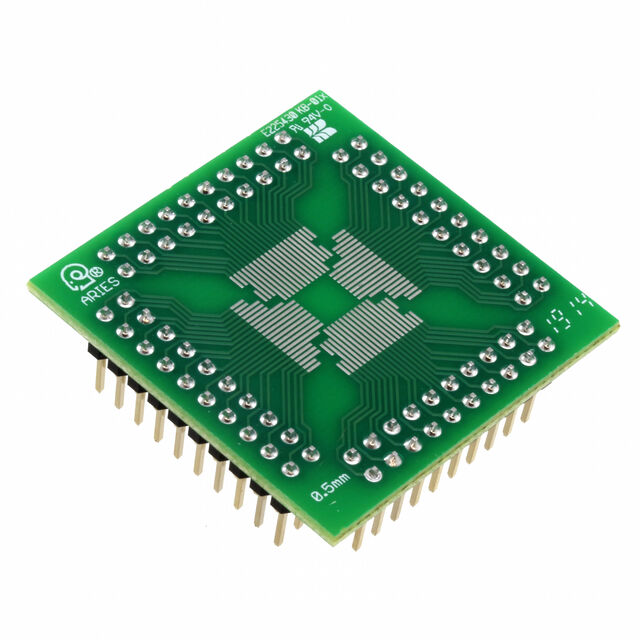

LCQT-QFP0.5-60

Active

Aries Electronics

SOCKET ADAPTER MULT PKG TO 60QFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCQT-QFP0.5-60

Active

Aries Electronics

SOCKET ADAPTER MULT PKG TO 60QFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCQT-QFP0.5-60

Board Material	FR4 Epoxy Glass
Contact Finish - Post	Gold
Contact Finish Thickness - Post	Flash
Contact Material - Post [custom]	Brass
Convert From (Adapter End)	Multiple Packages
Convert To (Adapter End)	QFP
Housing Material	Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Pins	60 pins
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.02 in
Pitch - Mating	0.5 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	0.236 in
Termination Post Length [x]	6 mm

LCQT-QF Series

Part	Convert To (Adapter End)	Pitch - Mating	Pitch - Mating	Contact Material - Post [custom]	Material Flammability Rating	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Termination Post Length [x]	Termination Post Length [x]	Termination	Contact Finish Thickness - Post	Board Material	Mounting Type	Number of Pins	Contact Finish - Post	Pitch - Post	Pitch - Post	Pitch [x]	Pitch [x]	Material	Number of Positions	Proto Board Type	Package Accepted	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Board Thickness	Board Thickness	Board Thickness
Aries Electronics LCQT-QFP0.5-80	QFP	0.02 in	0.5 mm	Brass	UL94 V-0	Multiple Packages	-55 °C	125 °C	Polyester	0.236 in	6 mm	Solder	Flash	FR4 Epoxy Glass	Through Hole	80	Gold	2.54 mm	0.1 in
Aries Electronics LCQT-QFP0.8-80	QFP	0.031 in	0.8 mm	Brass	UL94 V-0	Multiple Packages	-55 °C	125 °C	Polyester	0.236 in	6 mm	Solder	Flash	FR4 Epoxy Glass	Through Hole	80	Gold	2.54 mm	0.1 in
Aries Electronics LCQT-QFP0.5-64																				0.5 mm	0.02 in	FR4 Epoxy Glass	64	SMD to DIP	QFP	38.1 mm	38.1 mm	1.5 in	1.5 in	0.062 in	0.0625 in	1.57 mm
Aries Electronics LCQT-QFP0.5-40-1	QFP	0.02 in	0.5 mm	Brass	UL94 V-0	Multiple Packages	-55 °C	125 °C	Polyester	0.236 in	6 mm	Solder	Flash	FR4 Epoxy Glass	Through Hole	40	Gold	2.54 mm	0.1 in
Aries Electronics LCQT-QFP0.8-64																				0.8 mm	0.031 in	FR4 Epoxy Glass	64	SMD to DIP	QFP	43.18 mm	43.18 mm	1.7 "	1.7 "	0.062 in	0.0625 in	1.57 mm
Aries Electronics LCQT-QFP0.65-80	QFP	0.026 in	0.65 mm	Brass	UL94 V-0	Multiple Packages	-55 °C	125 °C	Polyester	0.236 in	6 mm	Solder	Flash	FR4 Epoxy Glass	Through Hole	80	Gold	2.54 mm	0.1 in
Aries Electronics LCQT-QFP0.5-60	QFP	0.02 in	0.5 mm	Brass	UL94 V-0	Multiple Packages	-55 °C	125 °C	Polyester	0.236 in	6 mm	Solder	Flash	FR4 Epoxy Glass	Through Hole	60 pins	Gold	2.54 mm	0.1 in
Aries Electronics LCQT-QFP0.65-64																				0.65 mm	0.026 in	FR4 Epoxy Glass	64	SMD to DIP	QFP	38.1 mm	38.1 mm	1.5 in	1.5 in	0.062 in	0.0625 in	1.57 mm
Aries Electronics LCQT-QFP0.5-40	QFP	0.02 in	0.5 mm	Brass	UL94 V-0	Multiple Packages	-55 °C	125 °C	Polyester	0.236 in	6 mm	Solder	Flash	FR4 Epoxy Glass	Through Hole	40	Gold	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	51	$ 9.91

Description

General part information

LCQT-QF Series

IC Socket Adapter Multiple Packages To QFP Through Hole
