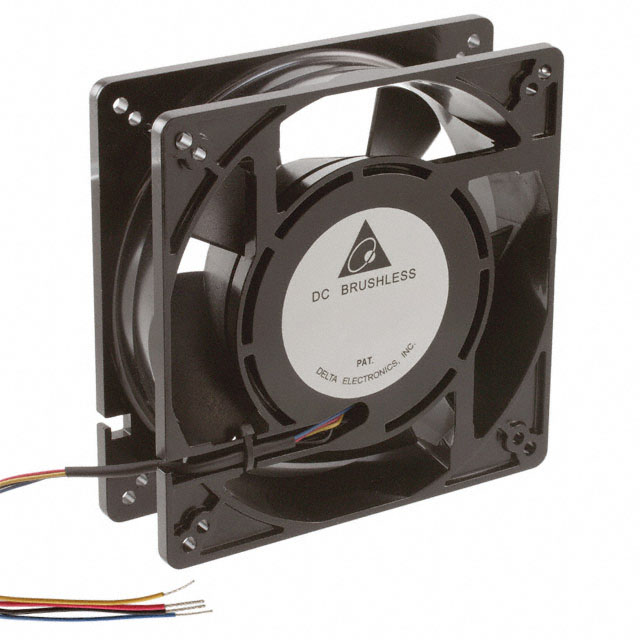

TDA1348AE

Obsolete

Delta Electronics

FAN AXIAL 127X38MM 48VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 127X38MM 48VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	TDA1348AE

Air Flow	160 CFM
Air Flow	4.48 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	400 mA
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	60.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	19.2 W
RPM	5300 RPM
Size / Dimension [x]	127 mm
Size / Dimension [y]	127 mm
Static Pressure	326.6 Pa
Static Pressure	1.311 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	36 VDC
Weight	0.772 lb
Weight	350.17 g
Width [y]	38 mm

Part	Bearing Type	RPM	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Material - Frame	Voltage - Rated [custom]	Current Rating (Amps)	Features	Static Pressure	Static Pressure	Termination	Air Flow	Air Flow	Material - Blade	Width [y]	Weight	Weight	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Fan Type	Noise	Power (Watts)
Delta Electronics TDA1348AE	Ball	5300 RPM	60 V	36 VDC	127 mm	127 mm	CE CSA UL VDE	Plastic	48 VDC	400 mA	Locked Rotor Protection PWM Control Speed Sensor (Tach)	326.6 Pa	1.311 in H2O	4 Wire Leads	160 CFM	4.48 m³/min	Plastic	38 mm	0.772 lb	350.17 g	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	Tubeaxial	60.5 dB(A)	19.2 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 48VDC Square - 127mm L x 127mm H Ball 160.0 CFM (4.48m³/min) 4 Wire Leads
