123-0701-201

Active

Cinch Connectivity Solutions Johnson

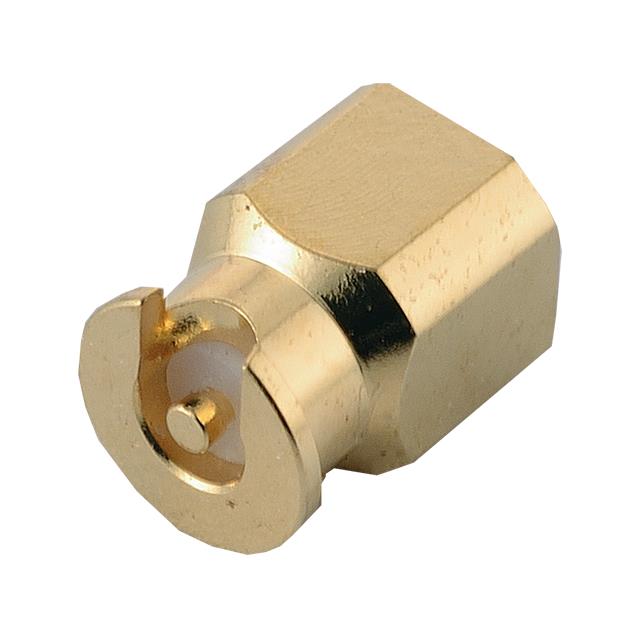

SMP3 VERTICAL PCB SMT, MALE, FUL

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

SMP3 VERTICAL PCB SMT, MALE, FUL

Technical Specifications

Parameters and characteristics for this part

Specification	123-0701-201

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMP3
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	50 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Voltage Rating	Frequency - Max [Max]	Housing Color	Body Finish	Dielectric Material	Center Contact Material	Fastening Type	Number of Ports	Connector Style	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Plating	Mounting Type	Impedance	Connector Type	Body Material	Contact Termination
Cinch Connectivity Solutions Johnson 123-0701-201	250 VDC	50 GHz	Gold	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Snap-On	1	SMP3	Solder	-65 ░C	165 °C	Gold	Surface Mount	50 Ohms	Male Pin Plug	Beryllium Copper	Solder
Cinch Connectivity Solutions Johnson 123-0701-801	250 VDC	50 GHz	Gold	Gold	Polytetrafluoroethylene (PTFE)	Beryllium Copper	Snap-On	1	SMP3	Solder	-65 ░C	165 °C	Gold	Board Edge Cutout Surface Mount	50 Ohms	Male Pin Plug	Beryllium Copper	Solder
