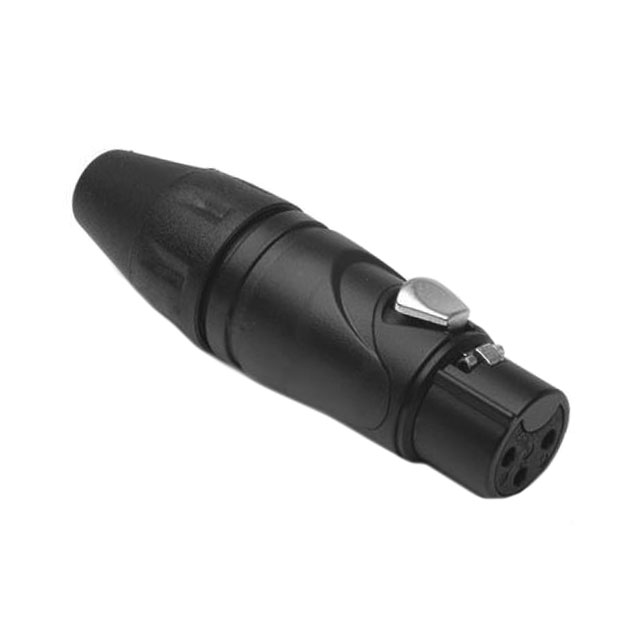

AX3FB

Active

AMPHENOL AUDIO

CONN PLUG FMALE XLR 3P SLDR CUP

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN PLUG FMALE XLR 3P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Shell Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Primary Material	Orientation	Contact Finish - Mating	Ingress Protection	Shell Finish	Fastening Type	Color	Mounting Type	Features	Connector Type
AMPHENOL AUDIO AX3FB4M-AU	Zinc Die Cast	15 A	-25 °C	75 ░C	XLR	Metal	Keyed	Gold	IP40	Black	Latch Lock	Black	Free Hanging (In-Line)	Backshell Cable Clamp	Female Sockets Plug
AMPHENOL AUDIO AX3FB	Zinc Die Cast	15 A	-25 °C	75 ░C	XLR	Metal	Keyed	Silver	IP40	Black	Latch Lock	Black	Free Hanging (In-Line)	Backshell Cable Clamp	Female Sockets Plug
AMPHENOL AUDIO AX3FB8M-AU	Zinc Die Cast	15 A	-25 °C	75 ░C	XLR	Metal	Keyed	Gold	IP40	Black	Latch Lock	Black	Free Hanging (In-Line)	Backshell Cable Clamp	Female Sockets Plug
AMPHENOL AUDIO AX3FB0M-AU	Zinc Die Cast	15 A	-25 °C	75 ░C	XLR	Metal	Keyed	Gold	IP40	Black	Latch Lock	Black	Free Hanging (In-Line)	Backshell Cable Clamp	Female Sockets Plug
AMPHENOL AUDIO AX3FB1M-AU	Zinc Die Cast	15 A	-25 °C	75 ░C	XLR	Metal	Keyed	Gold	IP40	Black	Latch Lock	Black	Free Hanging (In-Line)	Backshell Cable Clamp	Female Sockets Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
