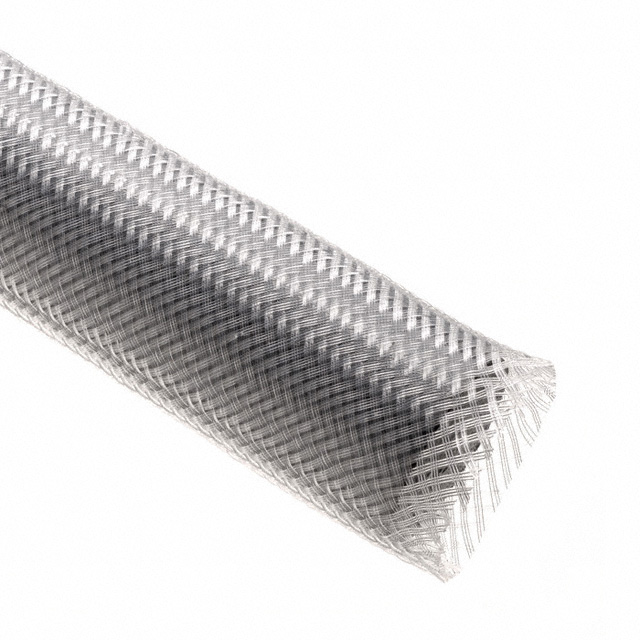

TFN0.25NT1000

Active

Techflex

EXPAND SLEEVE 1/4" X 1000' NAT

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVE 1/4" X 1000' NAT

Technical Specifications

Parameters and characteristics for this part

Specification	TFN0.25NT1000

Abrasion Protection	Abrasion and Cut Resistant
Color	Natural
Diameter - Inside, Expanded [diameter]	0.375 in
Diameter - Inside, Expanded [diameter]	9.52 mm
Features	Clean Cut, Chemical Resistant
Heat Protection	Flame Resistant, Heat Resistant
Length	1000 ft
Length	304.8 m
Liquid Protection	Gasoline Resistant
Material	Perfluoroalkoxy (PFA), Plenum Rated
Operating Temperature [Max]	280 °C
Operating Temperature [Min]	-70 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.04 in
Wall Thickness	1.02 mm

Part	Type	Heat Protection	Features	Material	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Liquid Protection	Wall Thickness	Wall Thickness	Type Attributes	Color	Length	Length	Abrasion Protection	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]
Techflex TFN0.50NT100	Sleeve	Flame Resistant Heat Resistant	Chemical Resistant Clean Cut	Perfluoroalkoxy (PFA) Plenum Rated	280 °C	-70 °C	0.5 in	12.7 mm	Gasoline Resistant	0.04 in	1.02 mm	Expandable	Natural	100 ft	30.48 m	Abrasion and Cut Resistant
Techflex TFN0.25NT1000	Sleeve	Flame Resistant Heat Resistant	Chemical Resistant Clean Cut	Perfluoroalkoxy (PFA) Plenum Rated	280 °C	-70 °C			Gasoline Resistant	0.04 in	1.02 mm	Expandable	Natural	1000 ft	304.8 m	Abrasion and Cut Resistant	0.375 in	9.52 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1295.30

General part information

Sleeve X 1000' (304.80m) Natural
