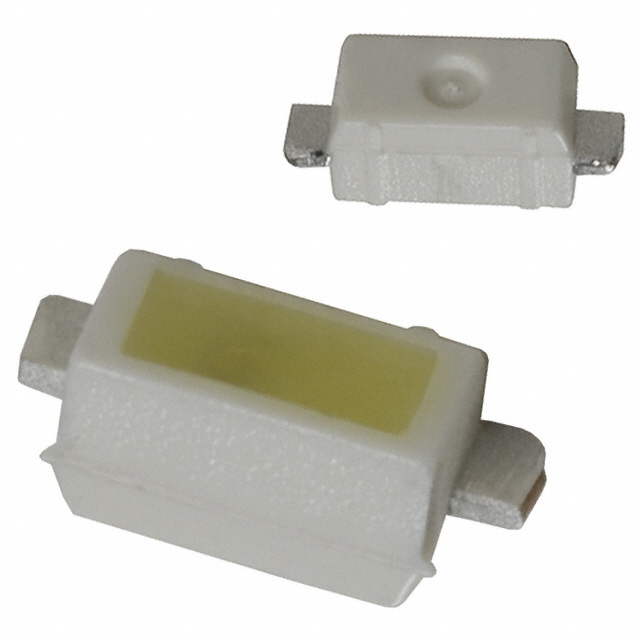

LW Y87C-S1T2-3K8L-0-20-R18-Z

Obsolete

ams-OSRAM USA INC.

LED WHITE DIFFUSED SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LW Y87C-S1T2-3K8L-0-20-R18-Z

Obsolete

ams-OSRAM USA INC.

LED WHITE DIFFUSED SMD R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LW Y87C-S1T2-3K8L-0-20-R18-Z

Color	White
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max]	1.2 mm
Lens Color	Yellow
Lens Size [x]	1.7 mm
Lens Size [y]	0.7 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Diffused
Millicandela Rating	315 mcd
Mounting Type	Surface Mount, Right Angle
Package / Case	2-SMD, Flat Leads
Size / Dimension [x]	2.2 mm
Size / Dimension [y]	1.2 mm
Supplier Device Package	SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.2 V

LW Y87C Series

Part	Lens Transparency	Voltage - Forward (Vf) (Typ)	Current - Test	Millicandela Rating	Height (Max) [Max] [z]	Color	Viewing Angle	Size / Dimension [y]	Size / Dimension [x]	Lens Color	Package / Case	Lens Style	Lens Size [y]	Lens Size [x]	Mounting Type	Supplier Device Package	Height (Max) [Max]	Configuration	Wavelength - Dominant
ams-OSRAM USA INC. LW Y87C-T1U1-7K-0-20-R18-Z-XX	Diffused	3.2 V	20 mA	420 mcd	1.3 mm	White	120 °	1 mm	2.2 mm	Yellow	2-SMD Flat Leads	Rectangle with Flat Top	0.7 mm	1.7 mm	Surface Mount	2-SMD
ams-OSRAM USA INC. LW Y87C-T1U1-3C5D	Diffused	3.6 V	20 mA	420 mcd		Cool White	120 °	1.2 mm	2.2 mm	Yellow	2-SMD Flat Leads	Rectangle with Flat Top	0.7 mm	1.7 mm	Surface Mount Right Angle	SMD	1.2 mm	Standard	5600 K
ams-OSRAM USA INC. LW Y87C-T1U1-3K4L-0-20-R18-Z-XX	Diffused	3.2 V	20 mA	420 mcd	1.3 mm	White	120 °	1 mm	2.2 mm	Yellow	2-SMD Flat Leads	Rectangle with Flat Top	0.7 mm	1.7 mm	Surface Mount	2-SMD
ams-OSRAM USA INC. LW Y87C-T1U2-6K-0-20-R18-Z	Diffused	3.2 V	20 mA		1.3 mm	White	120 °	1 mm	2.2 mm	Yellow	2-SMD Flat Leads	Rectangle with Flat Top	0.7 mm	1.7 mm	Surface Mount	2-SMD
ams-OSRAM USA INC. LW Y87C-T1T2-3K4L-0-20-R18-Z-XX	Diffused	3.2 V	20 mA	365 mcd	1.3 mm	White	120 °	1 mm	2.2 mm	Yellow	2-SMD Flat Leads	Rectangle with Flat Top	0.7 mm	1.7 mm	Surface Mount	2-SMD
ams-OSRAM USA INC. LW Y87C-T2U1-6K6L-0-20-R18-Z-XX	Diffused	3.2 V	20 mA	457.5 mcd	1.3 mm	White	120 °	1 mm	2.2 mm	Yellow	2-SMD Flat Leads	Rectangle with Flat Top	0.7 mm	1.7 mm	Surface Mount	2-SMD
ams-OSRAM USA INC. LW Y87C-T1U1-56L-0-20-R18-Z-XX	Diffused	3.2 V	20 mA	420 mcd	1.3 mm	White	120 °	1 mm	2.2 mm	Yellow	2-SMD Flat Leads	Rectangle with Flat Top	0.7 mm	1.7 mm	Surface Mount	2-SMD
ams-OSRAM USA INC. LW Y87C-T1U1-5K5L-0-20-R18-Z	Diffused	3.2 V	20 mA	420 mcd	1.3 mm	White	120 °	1 mm	2.2 mm	Yellow	2-SMD Flat Leads	Rectangle with Flat Top	0.7 mm	1.7 mm	Surface Mount	2-SMD
ams-OSRAM USA INC. LW Y87C-T1U1-78L-0-20-R18-Z-XX	Diffused	3.2 V	20 mA	420 mcd	1.3 mm	White	120 °	1 mm	2.2 mm	Yellow	2-SMD Flat Leads	Rectangle with Flat Top	0.7 mm	1.7 mm	Surface Mount	2-SMD
ams-OSRAM USA INC. LW Y87C-S1T2-3K8L-0-20-R18-Z	Diffused	3.2 V	20 mA	315 mcd		White	120 °	1.2 mm	2.2 mm	Yellow	2-SMD Flat Leads	Rectangle with Flat Top	0.7 mm	1.7 mm	Surface Mount Right Angle	SMD	1.2 mm	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LW Y87C Series

White LED Indication - Discrete 3.2V 2-SMD, Flat Leads
