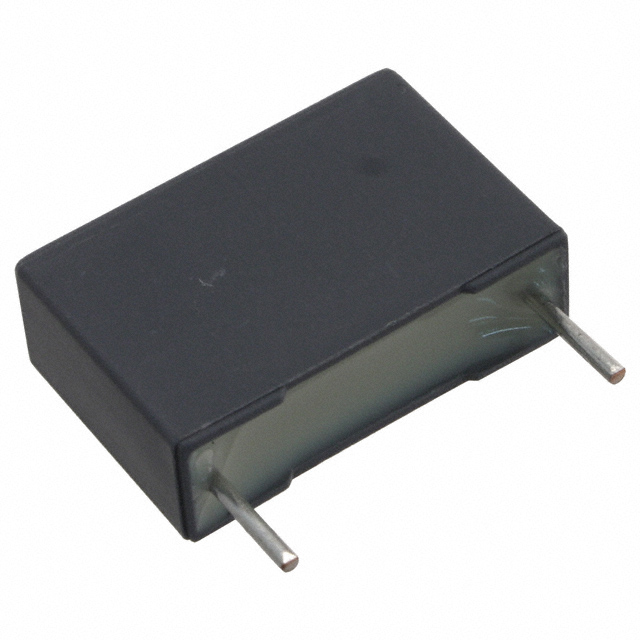

R60II3470AA30K

Active

KEMET

FILM CAPACITOR, POLYESTER, 250V, 0.47UF, 7124

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R60II3470AA30K +2

R60II3470AA30K

Active

KEMET

FILM CAPACITOR, POLYESTER, 250V, 0.47UF, 7124

Deep-Dive with AI

DocumentsDatasheet R60II3470AA30K +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R60II3470AA30K

Applications	Automotive
Capacitance	0.47 µF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max) [Max] [z]	12.1 mm
Height - Seated (Max) [Max] [z]	0.476 "
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	0.236 in
Size / Dimension [y]	6 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	160 V
Voltage Rating - DC	250 V

R60II Series

Part	Termination	Dielectric Material	Ratings	Voltage Rating - AC	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC	Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R60II31005030J	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.437 in	11.1 mm	250 V	100000 pF	18 mm	0.197 "	5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	5 %	Radial
KEMET R60II36805030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in			250 V	680 nF	18 mm	0.295 in	7.5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II31004030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.437 in	11.1 mm	250 V	100000 pF	18 mm	0.197 "	5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II36804030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in			250 V	680 nF	18 mm	0.295 in	7.5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II32205030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.437 in	11.1 mm	250 V	0.22 µF	18 mm	0.197 "	5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II31005030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.437 in	11.1 mm	250 V	100000 pF	18 mm	0.197 "	5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II4100AA30J	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.575 in	14.6 mm	250 V	1 µF	18 mm	0.335 in	8.5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	5 %	Radial
KEMET R60II32204030K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in	0.437 in	11.1 mm	250 V	0.22 µF	18 mm	0.197 "	5 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial
KEMET R60II34705030J	PC Pins	Metallized - Stacked Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in			250 V	0.47 µF	18 mm	0.236 in	6 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	5 %	Radial	12.1 mm	0.476 "
KEMET R60II3470AA30K	PC Pins	Metallized Polyester Polyethylene Terephthalate (PET)	AEC-Q200	160 V	15 mm	0.591 in			250 V	0.47 µF	18 mm	0.236 in	6 mm	0.709 in	Automotive	105 ░C	-55 °C	Through Hole	10 %	Radial	12.1 mm	0.476 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.06
		10	$ 0.77
		50	$ 0.67
		100	$ 0.55
		500	$ 0.45
		1750	$ 0.39
		3500	$ 0.36
		5250	$ 0.34
Newark	Each	1000	$ 0.46

Description

General part information

R60II Series

0.47 µF Film Capacitor 160V 250V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
