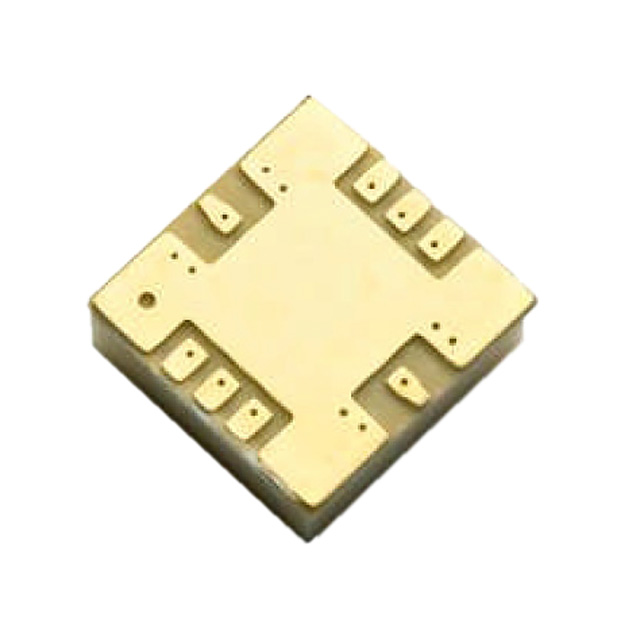

AMMP-5618-TR1
ObsoleteBroadcom Limited
IC RF AMP ISM 6GHZ-20GHZ 8SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMMP-5618-TR1
ObsoleteBroadcom Limited
IC RF AMP ISM 6GHZ-20GHZ 8SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMMP-5618-TR1 |
|---|---|
| Current - Supply [Max] | 140 mA |
| Current - Supply [Min] | 107 mA |
| Frequency [Max] | 20 GHz |
| Frequency [Min] | 6 GHz |
| Gain | 13 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 4.4 dB |
| P1dB | 19 dBm |
| Package / Case | 8-SMD, No Lead |
| RF Type | WLL, MMDS, 802.16/WiMax, VSAT, DBS, ISM |
| Supplier Device Package | 8-SMD (5x5) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AMMP-5618 Series
RF Amplifier IC ISM, MMDS, WLL, 802.16/WiMAX, DBS, VSAT 6GHz ~ 20GHz 8-SMD (5x5)
