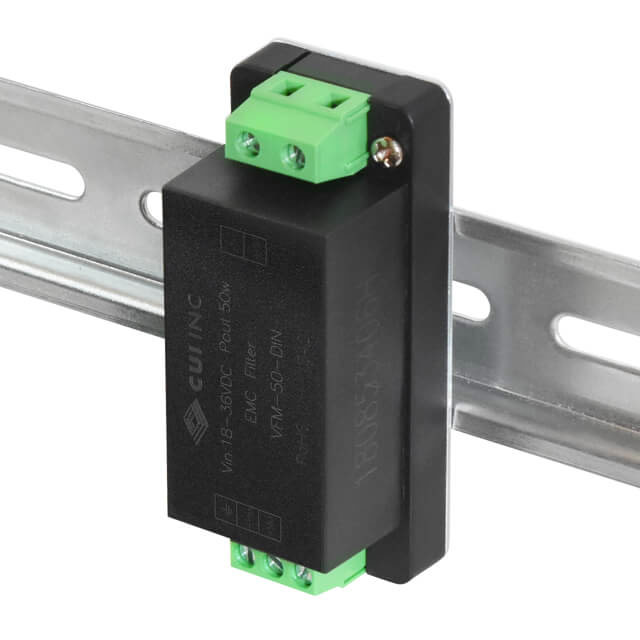

VFM-50-DIN

CUI Inc.

DC FILTER DIN RAIL EMC FILTERS ROHS

Search across all available documentation for this part.

CUI Inc.

DC FILTER DIN RAIL EMC FILTERS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Filter Type	Applications	Voltage - Rated DC	Mounting Type	Configuration
CUI Inc. VFM-50-DIN	85 °C	-40 °C	Terminal Block	DC	General Purpose	36 V	DIN Rail	Single Stage
CUI Inc. VFM-50-UW-T	85 °C	-40 °C	Terminal Block	DC	General Purpose	160 V	Chassis Mount	Single Stage
CUI Inc. VFM-50-T	85 °C	-40 °C	Terminal Block	DC	General Purpose	36 V	Chassis Mount	Single Stage
CUI Inc. VFM-50-D	85 °C	-40 °C	PC Pins	DC	General Purpose	36 V	Through Hole	Single Stage
CUI Inc. VFM-50-UW-D	85 °C	-40 °C	PC Pins	DC	General Purpose	160 V	Through Hole	Single Stage
CUI Inc. VFM-50-UW-DIN	85 °C	-40 °C	Terminal Block	DC	General Purpose	160 V	DIN Rail	Single Stage

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DC EMC/EMI Line Filter 36V Single Stage Terminal Block

Technical documentation and resources

No documents available
