M22-2015005

Active

Harwin Inc.

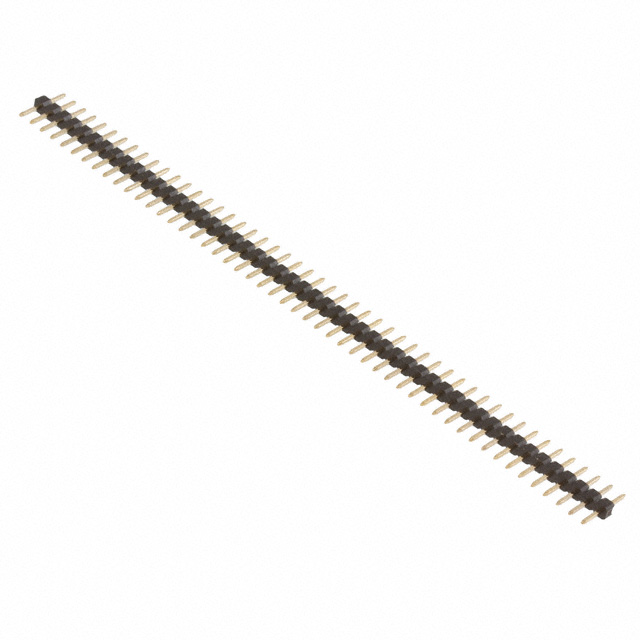

CONNECTOR, HEADER, 50POS, 1ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M20-003 +3

M22-2015005

Active

Harwin Inc.

CONNECTOR, HEADER, 50POS, 1ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M20-003 +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M22-2015005

Connector Type	Cuttable, Header
Contact Finish - Mating	Gold
Contact Length - Mating	0.138 in
Contact Length - Mating	3.5 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	8.6 mm, 5.9 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.4 mm
Overall Contact Length	0.331 in
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder

M22-201 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Number of Positions	Number of Rows	Insulation Height	Insulation Height	Material Flammability Rating	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Insulation Color	Insulation Material	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Contact Finish - Mating	Contact Shape	Shrouding	Termination	Mated Stacking Heights	Current Rating (Amps)	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post
Harwin Inc. M22-2011805	105 ░C	-55 °C	Phosphor Bronze	All	8.4 mm	0.331 in	18	1	1.5 mm	0.059 "	UL94 V-0	0.079 in	2 mm	Push-Pull	Black	Nylon 6T Polyamide (PA6T)	Cuttable Header	0.134 in	3.4 mm	Male Pin	Gold	Square	Unshrouded	Solder	5.9 mm 8.6 mm	1 A	Through Hole	0.138 in	3.5 mm
Harwin Inc. M22-2011246	105 ░C	-55 °C	Phosphor Bronze	All	8.4 mm	0.331 in	12	1	1.5 mm	0.059 "	UL94 V-0	0.079 in	2 mm	Push-Pull	Black	Nylon 6T Polyamide (PA6T)	Cuttable Header	0.134 in	3.4 mm	Male Pin		Square	Unshrouded	Solder	5.9 mm 8.6 mm	1 A	Through Hole	0.138 in	3.5 mm	Tin
Harwin Inc. M22-2011846	105 ░C	-55 °C	Phosphor Bronze	All	8.4 mm	0.331 in	18	1	1.5 mm	0.059 "	UL94 V-0	0.079 in	2 mm	Push-Pull	Black	Nylon 6T Polyamide (PA6T)	Cuttable Header	0.134 in	3.4 mm	Male Pin		Square	Unshrouded	Solder	5.9 mm 8.6 mm	1 A	Through Hole	0.138 in	3.5 mm	Tin
Harwin Inc. M22-2010505	105 ░C	-55 °C	Phosphor Bronze	All	8.4 mm	0.331 in		1	1.5 mm	0.059 "	UL94 V-0	0.079 in	2 mm	Push-Pull	Black	Nylon 6T Polyamide (PA6T)	Cuttable Header	0.134 in	3.4 mm	Male Pin	Gold	Square	Unshrouded	Solder	5.9 mm 8.6 mm	1 A	Through Hole	0.138 in	3.5 mm
Harwin Inc. M22-2010946	105 ░C	-55 °C	Phosphor Bronze	All	8.4 mm	0.331 in	9	1	1.5 mm	0.059 "	UL94 V-0	0.079 in	2 mm	Push-Pull	Black	Nylon 6T Polyamide (PA6T)	Cuttable Header	0.134 in	3.4 mm	Male Pin		Square	Unshrouded	Solder	5.9 mm 8.6 mm	1 A	Through Hole	0.138 in	3.5 mm	Tin
Harwin Inc. M22-2011705	105 ░C	-55 °C	Phosphor Bronze	All	8.4 mm	0.331 in		1	1.5 mm	0.059 "	UL94 V-0	0.079 in	2 mm	Push-Pull	Black	Nylon 6T Polyamide (PA6T)	Cuttable Header	0.134 in	3.4 mm	Male Pin	Gold	Square	Unshrouded	Solder	5.9 mm 8.6 mm	1 A	Through Hole	0.138 in	3.5 mm
Harwin Inc. M22-2015005	105 ░C	-55 °C	Phosphor Bronze	All	8.4 mm	0.331 in	50	1	1.5 mm	0.059 "	UL94 V-0	0.079 in	2 mm	Push-Pull	Black	Nylon 6T Polyamide (PA6T)	Cuttable Header	0.134 in	3.4 mm	Male Pin	Gold	Square	Unshrouded	Solder	5.9 mm 8.6 mm	1 A	Through Hole	0.138 in	3.5 mm
Harwin Inc. M22-2011205	105 ░C	-55 °C	Phosphor Bronze	All	8.4 mm	0.331 in	12	1	1.5 mm	0.059 "	UL94 V-0	0.079 in	2 mm	Push-Pull	Black	Nylon 6T Polyamide (PA6T)	Cuttable Header	0.134 in	3.4 mm	Male Pin	Gold	Square	Unshrouded	Solder	5.9 mm 8.6 mm	1 A	Through Hole	0.138 in	3.5 mm
Harwin Inc. M22-2010305	105 ░C	-55 °C	Phosphor Bronze	All	8.4 mm	0.331 in		1	1.5 mm	0.059 "	UL94 V-0	0.079 in	2 mm	Push-Pull	Black	Nylon 6T Polyamide (PA6T)	Cuttable Header	0.134 in	3.4 mm	Male Pin	Gold	Square	Unshrouded	Solder	5.9 mm 8.6 mm	1 A	Through Hole	0.138 in	3.5 mm
Harwin Inc. M22-2011005	105 ░C	-55 °C	Phosphor Bronze	All	8.4 mm	0.331 in	10	1	1.5 mm	0.059 "	UL94 V-0	0.079 in	2 mm	Push-Pull	Black	Nylon 6T Polyamide (PA6T)	Cuttable Header	0.134 in	3.4 mm	Male Pin	Gold	Square	Unshrouded	Solder	5.9 mm 8.6 mm	1 A	Through Hole	0.138 in	3.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.11
		10	$ 2.82
		200	$ 2.49
		1000	$ 1.80
		5000	$ 1.62
Newark	Each	1	$ 3.15
		10	$ 2.41
		25	$ 2.33
		50	$ 2.25
		100	$ 2.17
		250	$ 2.09
		500	$ 1.84
		1000	$ 1.59

Description

General part information

M22-201 Series

Connector Header Through Hole 50 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

M20-003

M22-2015005

Deep-Dive with AI

M22-2015005

Deep-Dive with AI

Technical Specifications

M22-201 Series

Pricing

Description

M22-201 Series

Documents

Datasheet

M20-003

M22 Series Spec Sheet

Manufacturer Catalogue EN

Drawing EN

M22-201 Series
