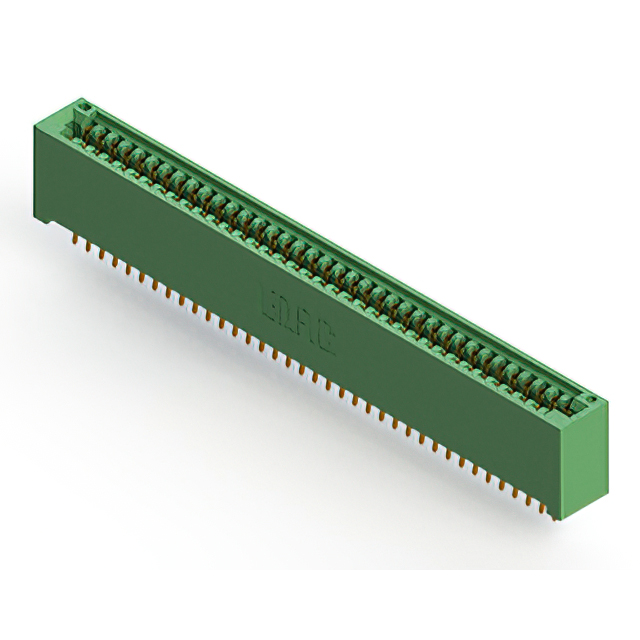

845-074-556-201

Active

EDAC Inc.

2.54MM CLAMP BOARD 74P -40℃~+125℃ P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

845-074-556-201

Active

EDAC Inc.

2.54MM CLAMP BOARD 74P -40℃~+125℃ P=2.54MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	845-074-556-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Board Edge, Straddle Mount
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

845-074 Series

...

Part	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Termination	Read Out	Pitch [x]	Pitch [x]	Gender	Contact Material	Number of Positions	Termination Rows	Features	Contact Finish	Color	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Mounting Type	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]
EDAC Inc. 845-074-556-503	2	10 Áin	0.25 Ám	Solder	Dual	2.54 mm	0.1 in	Female	Copper Alloy	74	2	Card Extender	Gold	Green	Cantilever	125 °C	-40 °C	Diallyl Phthalate (DAP)	37	37	37	Board Edge Straddle Mount	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 845-074-542-212	2	10 Áin	0.25 Ám	Wire Wrap	Dual	2.54 mm	0.1 in	Female	Copper Alloy	74	2		Gold	Green	Cantilever	125 °C	-40 °C	Diallyl Phthalate (DAP)	37	37	37	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 845-074-556-201	2	10 Áin	0.25 Ám	Solder	Dual	2.54 mm	0.1 in	Female	Copper Alloy	74	2	Card Extender	Gold	Green	Cantilever	125 °C	-40 °C	Diallyl Phthalate (DAP)	37	37	37	Board Edge Straddle Mount	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 845-074-525-507	2	10 Áin	0.25 Ám	Solder	Dual	2.54 mm	0.1 in	Female	Copper Alloy	74	2		Gold	Green	Cantilever	125 °C	-40 °C	Diallyl Phthalate (DAP)	37	37	37	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-074-521-807	2	10 Áin	0.25 Ám	Solder	Dual	2.54 mm	0.1 in	Female	Copper Alloy	74	2		Gold	Green	Cantilever	125 °C	-40 °C	Diallyl Phthalate (DAP)	37	37	37	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-074-520-808	2	10 Áin	0.25 Ám	Solder	Dual	2.54 mm	0.1 in	Female	Copper Alloy	74	2		Gold	Green	Cantilever	125 °C	-40 °C	Diallyl Phthalate (DAP)	37	37	37	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Threaded Insert Top Mount Opening
EDAC Inc. 845-074-520-807	2	10 Áin	0.25 Ám	Solder	Dual	2.54 mm	0.1 in	Female	Copper Alloy	74	2		Gold	Green	Cantilever	125 °C	-40 °C	Diallyl Phthalate (DAP)	37	37	37	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		M3 Threaded Insert Top Mount Opening
EDAC Inc. 845-074-523-208	2	10 Áin	0.25 Ám	Solder	Dual	2.54 mm	0.1 in	Female	Copper Alloy	74	2		Gold	Green	Cantilever	125 °C	-40 °C	Diallyl Phthalate (DAP)	37	37	37	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 845-074-559-804	2	10 Áin	0.25 Ám	Solder	Dual	2.54 mm	0.1 in	Female	Copper Alloy	74	2		Gold	Green	Cantilever	125 °C	-40 °C	Diallyl Phthalate (DAP)	37	37	37	Through Hole Right Angle	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	3.96 mm	Top Mount Opening Unthreaded	0.156 in
EDAC Inc. 845-074-524-212	2	10 Áin	0.25 Ám	Solder	Dual	2.54 mm	0.1 in	Female	Copper Alloy	74	2		Gold	Green	Cantilever	125 °C	-40 °C	Diallyl Phthalate (DAP)	37	37	37	Through Hole	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 85.76
LCSC	Piece	1	$ 43.80
		200	$ 16.95
		500	$ 16.36
		1000	$ 16.06

Description

General part information

845-074 Series

74 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
