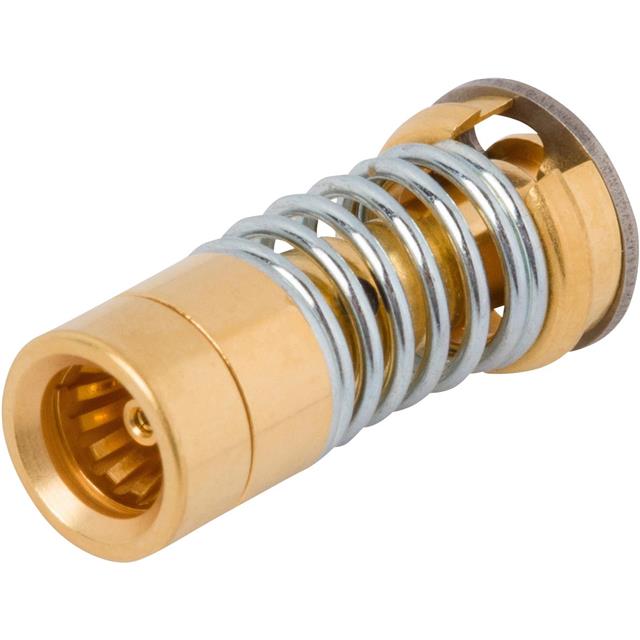

1440-6001

Active

Amphenol SV Microwave

CONN BMMA 0HZ TO 28GHZ 50OHM ST PANEL MOUNT RCP GOLD OVER NICKEL TRAY

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN BMMA 0HZ TO 28GHZ 50OHM ST PANEL MOUNT RCP GOLD OVER NICKEL TRAY

Technical Specifications

Parameters and characteristics for this part

Specification	1440-6001

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	0.085 in
Cable Group	RG-405
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	28 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	5000
Mounting Type	Panel Mount, Snap-In
Number of Ports	1
Shield Termination	Solder

Part	Frequency - Max [Max]	Center Contact Plating	Mating Cycles	Impedance	Body Finish	Dielectric Material	Number of Ports	Mounting Type	Contact Termination	Cable Group	Cable Group	Connector Style	Connector Type	Shield Termination	Center Contact Material	Body Material	Housing Color	Fastening Type
Amphenol SV Microwave 1440-6001	28 GHz	Gold	5000	50 Ohms	Gold	Polytetrafluoroethylene (PTFE)	1	Panel Mount Snap-In	Solder	0.085 in	RG-405	BMMA	Female Socket Jack	Solder	Beryllium Copper	Stainless Steel	Gold	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BMMA Connector Jack, Female Socket 50 Ohms Panel Mount, Snap-In Solder
