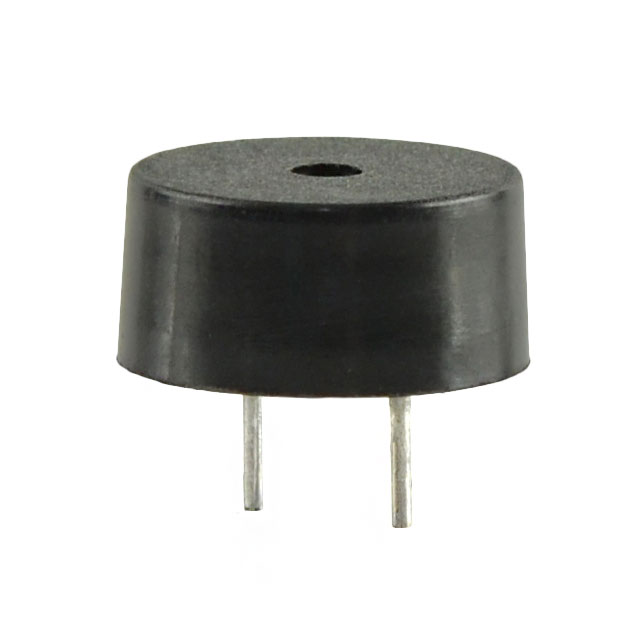

CPT-1255C-090

Active

CUI Devices

BUZZER PIEZO 12.00MM TH

Search across all available documentation for this part.

Active

CUI Devices

BUZZER PIEZO 12.00MM TH

Technical Specifications

Parameters and characteristics for this part

Specification	CPT-1255C-090

Current - Supply	7 mA
Driver Circuitry	Externally Driven, Transducer
Frequency	4 kHz
Height - Seated (Max) [Max]	0.236 in
Height - Seated (Max) [Max]	6 mm
Input Type	Peak-Peak Signal
Mounting Type	Through Hole
Operating Mode	Single Tone
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Port Location	Top
Size / Dimension [diameter]	12 mm
Size / Dimension [diameter]	0.472 in
Sound Pressure Level (SPL)	80 dB
Technology	Piezo
Termination	PC Pins
Voltage Range [Max]	20 V
Voltage Range [Min]	1 V

Part	Port Location	Frequency	Mounting Type	Voltage Range [Max]	Voltage Range [Min]	Sound Pressure Level (SPL)	Current - Supply	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Termination	Driver Circuitry	Operating Mode	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Technology
CUI Devices CPT-1255C-090	Top	4 kHz	Through Hole	20 V	1 V	80 dB	7 mA	0.236 in	6 mm	PC Pins	Externally Driven Transducer	Single Tone	12 mm	0.472 in	85 °C	-40 °C	Peak-Peak Signal	Piezo

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Transducer, Externally Driven Piezo 7mA 4kHz 80dB @ 9V, 10cm Through Hole PC Pins
