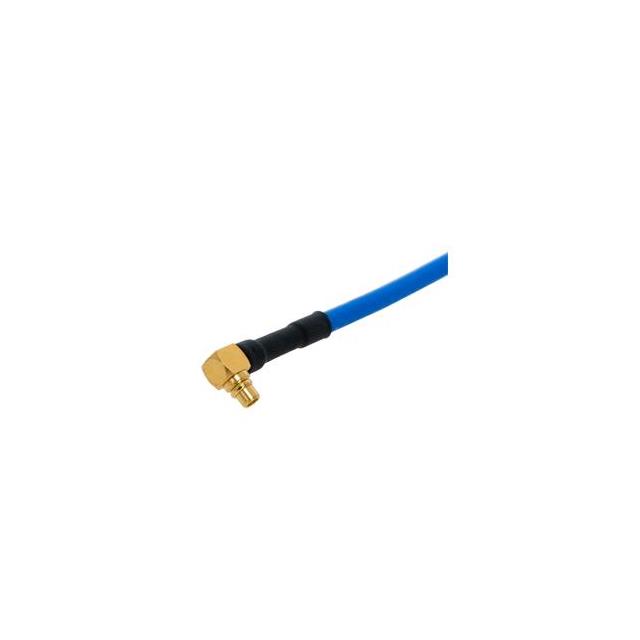

16_MMCX-50-2-13/111_OE

Active

Huber+Suhner, Inc.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

16_MMCX-50-2-13/111_OE

Active

Huber+Suhner, Inc.

16_MMCX-50-2-13/111_OE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	16_MMCX-50-2-13/111_OE

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

16_MMCX-50 Series

Part	Number of Ports	Fastening Type	Cable Group	Center Contact Material	Contact Termination	Voltage Rating	Frequency - Max [Max]	Connector Type	Shield Termination	Connector Style	Body Finish	Impedance	Mating Cycles	Center Contact Plating	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Housing Color	Mounting Type	Cable Group
Huber+Suhner, Inc. 16_MMCX-50-1-7/111_OH	1	Snap-On	RG-178	Beryllium Copper	Solder	170 V	6000 MHz	Male Pin Plug	Crimp	MMCX	Gold	50 Ohms	500	Gold	Brass	155 °C	-55 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Free Hanging (In-Line) Right Angle
Huber+Suhner, Inc. 16_MMCX-50-1-1/111_OE	1	Snap-On	RG-178	Bronze	Solder	170 V	6000 MHz	Male Pin Plug	Crimp	MMCX	Gold	50 Ohms	500	Gold	Brass	155 °C	-55 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Free Hanging (In-Line) Right Angle	196
Huber+Suhner, Inc. 16_MMCX-50-1-7/111_OE	1	Snap-On	RG-178	Beryllium Copper	Solder	170 V	6000 MHz	Male Pin Plug	Crimp	MMCX	Gold	50 Ohms	500	Gold	Brass	155 °C	-55 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Free Hanging (In-Line) Right Angle
Huber+Suhner, Inc. 16_MMCX-50-2-4/111_OH	1	Snap-On	188 316 RG-174	Beryllium Copper	Solder	170 V	6000 MHz	Male Pin Plug	Crimp	MMCX	Gold	50 Ohms	500	Gold	Brass	155 °C	-55 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Free Hanging (In-Line) Right Angle
Huber+Suhner, Inc. 16_MMCX-50-2-2/111_OE	1	Snap-On	RD-316	Beryllium Copper	Solder	170 V	6000 MHz	Male Pin Plug	Crimp	MMCX	Gold	50 Ohms	500	Gold	Brass	155 °C	-55 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Free Hanging (In-Line) Right Angle
Huber+Suhner, Inc. 16_MMCX-50-2-4/111_OE	1	Snap-On	188 316 RG-174	Beryllium Copper	Solder	170 V	6000 MHz	Male Pin Plug	Crimp	MMCX	Gold	50 Ohms	500	Gold	Brass	155 °C	-55 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Free Hanging (In-Line) Right Angle
Huber+Suhner, Inc. 16_MMCX-50-1-2/111_OH	1	Snap-On		Beryllium Copper	Crimp	170 V	6000 MHz	Male Pin Plug	Solder	MMCX	Gold	50 Ohms	500	Gold	Brass	155 °C	-55 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Free Hanging (In-Line) Right Angle
Huber+Suhner, Inc. 16_MMCX-50-2-13/111_OE	1	Snap-On	RG-405	Brass	Solder	170 V	6000 MHz	Male Pin Plug	Solder	MMCX	Gold	50 Ohms	500	Gold	Brass	155 °C	-55 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Free Hanging (In-Line) Right Angle
Huber+Suhner, Inc. 16_MMCX-50-1-12/111_OH	1	Snap-On	Semi Rigid	Beryllium Copper	Solder	170 V	6000 MHz	Male Pin Plug	Solder	MMCX	Gold	50 Ohms	500	Gold	Brass	155 °C	-55 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	Free Hanging (In-Line) Right Angle	0.047 in
Huber+Suhner, Inc. 16_MMCX-50-1-4/111_OE	1	Snap-On	Semi Rigid		Crimp	170 V	6000 MHz	Male Pin Plug	Crimp	MMCX		50 Ohms	500			155 °C	-55 °C			Free Hanging (In-Line) Right Angle	0.047 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.35
		10	$ 12.72
		25	$ 12.23
		50	$ 11.74
		100	$ 11.09
		250	$ 10.11
		500	$ 9.46
		1000	$ 8.68

Description

General part information

16_MMCX-50 Series

MMCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
