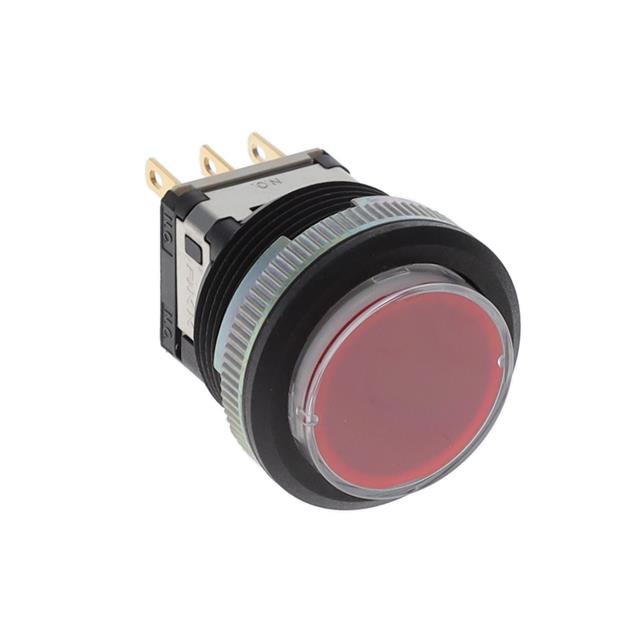

LB16WKG01-5C-JC
ActiveNKK Switches
STANDARD SIZE PANEL SEAL PUSHBUTTON
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LB16WKG01-5C-JC
ActiveNKK Switches
STANDARD SIZE PANEL SEAL PUSHBUTTON
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LB16WKG01-5C-JC |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Clear (Red Filter/Diffuser) |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 100000 Cycles |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 1.9 VDC |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22 mm |
| Switch Function | On-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
LB16WKG01 Series
| Part | Actuator Type | Color - Actuator/Cap | Electrical Life | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Illumination Type, Color | Termination Style | Termination Style | Termination Style | Circuit | Type | Actuator Marking | Current Rating (Amps) | Voltage Rating - DC | Illumination Voltage (Nominal) | Ingress Protection | Panel Cutout Dimensions [diameter] | Mechanical Life | Switch Function | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Button Round | Clear | 100000 Cycles | 50 °C | -25 °C | 28 V | Green LED | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Illuminated Standard | No Marking | 0.4 VA | 28 V | 3.3 VDC | IP65 - Dust Tight Water Resistant | 22 mm | 200000 Cycles | On-On | Panel Mount Front |
NKK Switches | Button Round | Clear | 100000 Cycles | 50 °C | -25 °C | 28 V | LED White | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Illuminated Standard | No Marking | 0.4 VA | 28 V | 3.3 VDC | IP65 - Dust Tight Water Resistant | 22 mm | 200000 Cycles | On-On | Panel Mount Front |
NKK Switches | Button Round | Clear (Red Filter/Diffuser) | 100000 Cycles | 50 °C | -25 °C | 28 V | LED Red | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Illuminated Standard | No Marking | 0.4 VA | 28 V | 24 V | IP65 - Dust Tight Water Resistant | 22 mm | 200000 Cycles | On-On | Panel Mount Front |
NKK Switches | Button Round | Clear (Red Filter/Diffuser) | 100000 Cycles | 50 °C | -25 °C | 28 V | LED Red | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Illuminated Standard | No Marking | 0.4 VA | 28 V | 1.9 VDC | IP65 - Dust Tight Water Resistant | 22 mm | 200000 Cycles | On-On | Panel Mount Front |
NKK Switches | Button Round | Red | 100000 Cycles | 70 °C | -25 °C | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Standard | No Marking | 0.4 VA | 28 V | IP65 - Dust Tight Water Resistant | 22 mm | 200000 Cycles | On-On | Panel Mount Front | ||
NKK Switches | Button Round | Clear | 100000 Cycles | 50 °C | -25 °C | 28 V | LED Red | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Illuminated Standard | No Marking | 0.4 VA | 28 V | 1.9 VDC | IP65 - Dust Tight Water Resistant | 22 mm | 200000 Cycles | On-On | Panel Mount Front |
NKK Switches | Button Round | Clear | 100000 Cycles | 50 °C | -25 °C | 28 V | Green LED | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Illuminated Standard | No Marking | 0.4 VA | 28 V | 2.1 VDC | IP65 - Dust Tight Water Resistant | 22 mm | 200000 Cycles | On-On | Panel Mount Front |
NKK Switches | Button Round | Clear (Red Filter/Diffuser) | 100000 Cycles | 50 °C | -25 °C | 28 V | LED Red | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Illuminated Standard | No Marking | 0.4 VA | 28 V | 12 VDC | IP65 - Dust Tight Water Resistant | 22 mm | 200000 Cycles | On-On | Panel Mount Front |
NKK Switches | Button Round | Clear | 100000 Cycles | 50 °C | -25 °C | 28 V | Green LED | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Illuminated Standard | No Marking | 0.4 VA | 28 V | 2.1 VDC | IP65 - Dust Tight Water Resistant | 22 mm | 200000 Cycles | On-On | Panel Mount Front |
NKK Switches | Button Round | Blue | 100000 Cycles | 70 °C | -25 °C | 28 V | 0.11 in | Quick Connect Solder | 2.8 mm | SPDT | Standard | No Marking | 0.4 VA | 28 V | IP65 - Dust Tight Water Resistant | 22 mm | 200000 Cycles | On-On | Panel Mount Front |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LB16WKG01 Series
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front
