C3AES-1006G

Active

CW Industries

IDC CABLE - CSC10S/AE10G/CCE10S

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC10S/AE10G/CCE10S

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Rows	Shielding	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Pitch - Cable	Pitch - Cable	Connector Type	Color	Number of Positions	Length	Length	Length
CW Industries C3AES-1036M	3 ft	914.4 mm	0.1 in	2.54 mm	Tin	2	Unshielded	2.54 µm	100 µin	IDC	0.05 "	1.27 mm	Socket to Card Edge	Multiple Ribbon	10
CW Industries C3AES-1006G			0.1 in	2.54 mm	Tin	2	Unshielded	2.54 µm	100 µin	IDC	0.05 "	1.27 mm	Socket to Card Edge		10	152.4 mm	6 "	0.5 '
CW Industries C3AES-1006M			0.1 in	2.54 mm	Tin	2	Unshielded	2.54 µm	100 µin	IDC	0.05 "	1.27 mm	Socket to Card Edge	Multiple Ribbon	10	152.4 mm	6 "	0.5 '
CW Industries C3AES-1018G	1.5 ft	457.2 mm	0.1 in	2.54 mm	Tin	2	Unshielded	2.54 µm	100 µin	IDC	0.05 "	1.27 mm	Socket to Card Edge		10
CW Industries C3AES-1018M	1.5 ft	457.2 mm	0.1 in	2.54 mm	Tin	2	Unshielded	2.54 µm	100 µin	IDC	0.05 "	1.27 mm	Socket to Card Edge	Multiple Ribbon	10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

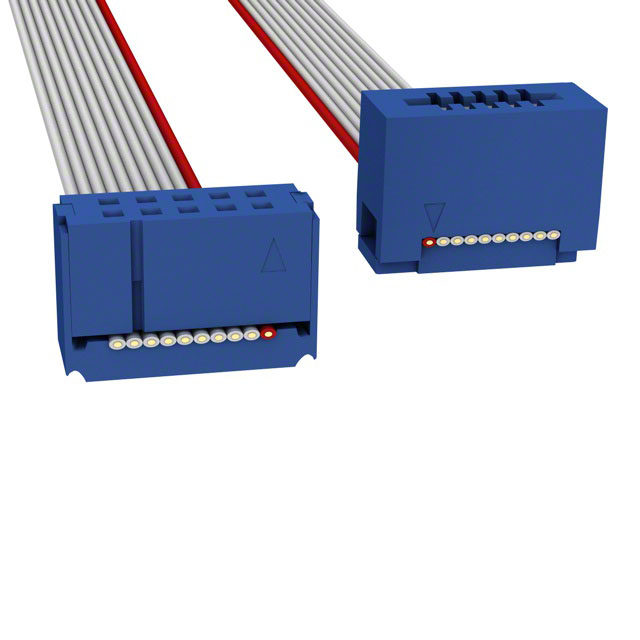

10 Position Cable Assembly Rectangular Socket to Card Edge 0.500' (152.40mm, 6.00")
