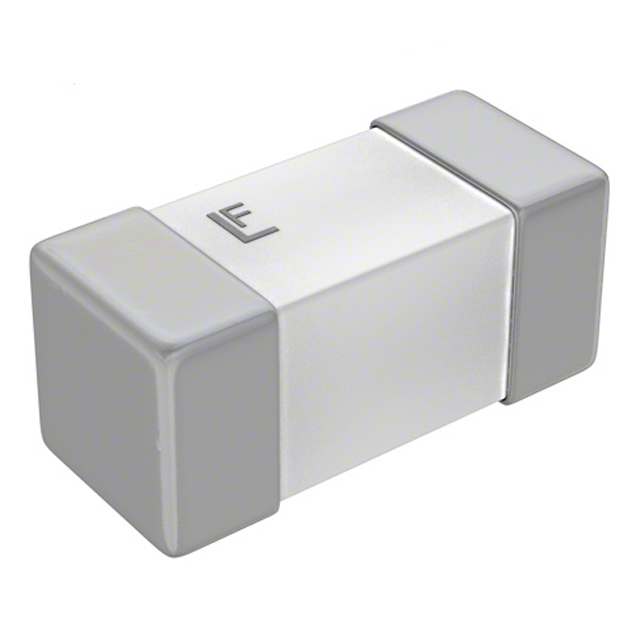

0448.750MR - 448, 476 Series

0448.750MR

Active
Littelfuse/Commercial Vehicle Products

FUSE, SURFACE MOUNT, 750 MA, VERY FAST ACTING, 125 VAC, 125 VDC, 2410 [6125 METRIC]

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+3
0448.750MR - 448, 476 Series

0448.750MR

Active
Littelfuse/Commercial Vehicle Products

FUSE, SURFACE MOUNT, 750 MA, VERY FAST ACTING, 125 VAC, 125 VDC, 2410 [6125 METRIC]

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+3

Technical Specifications

Parameters and characteristics for this part

Specification0448.750MR
Approval AgencyCSA, UL
Breaking Capacity @ Rated Voltage50 A
Current Rating (Amps)750 mA
DC Cold Resistance0.2475 Ohms
Fuse TypeBoard Mount
Melting I²t0.206
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / Case2-SMD, Square End Block
Response TimeFast Blow
Size / Dimension [x]6.1 mm
Size / Dimension [x]0.24 in
Size / Dimension [y]0.106 in
Size / Dimension [y]2.69 mm
Size / Dimension [z]2.69 mm
Size / Dimension [z]0.106 in
Voltage Rating - AC125 V
Voltage Rating - DC125 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.53
5$ 1.48
10$ 1.38
50$ 1.14
100$ 0.95
250$ 0.93
500$ 0.79
Digi-Reel® 1$ 1.53
5$ 1.48
10$ 1.38
50$ 1.14
100$ 0.95
250$ 0.93
500$ 0.79
Tape & Reel (TR) 1000$ 0.59
NewarkEach (Supplied on Full Reel) 1000$ 0.62
2000$ 0.59
4000$ 0.58

Description

General part information

0448.750 Series

The lead free Nano2® SMF Fuse is a very small, square surface mount fuse that is RoHS compliant and 100% Lead-Free. This product is fully compatible with lead-free solder alloys and higher temperature profiles associated with lead-free assembly.
