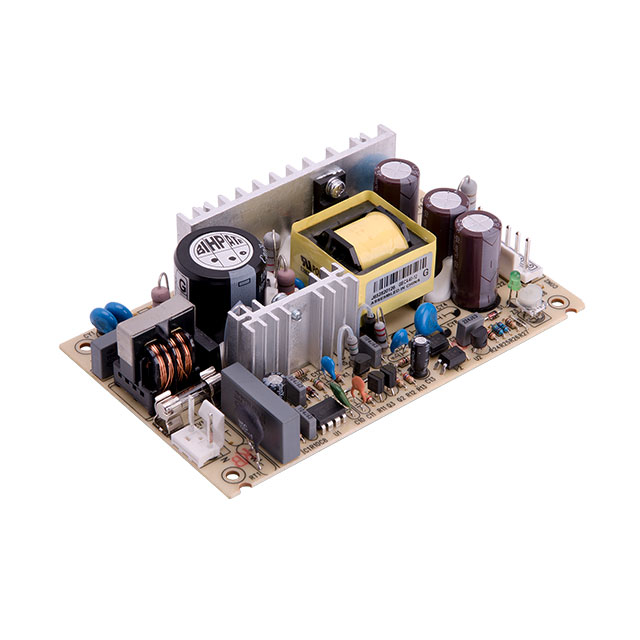

GECA40AG

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 5V +/-12V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GECA40AG

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 5V +/-12V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GECA40AG

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	3.5 A
Current - Output 2	2 A
Current - Output 3	300 mA
Efficiency	80 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	0 °C
Power (Watts)	40 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.25 "
Size / Dimension [z]	31.8 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	5 V
Voltage - Output 2	12 V
Voltage - Output 3	-12 V

GECA40 Series

Part	Voltage - Output 1	Efficiency	Approval Agency	Mounting Type	Power (Watts)	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Features	Current - Output 3	Current - Output 2	Voltage - Output 2	Voltage - Output 3
SL POWER / Advanced Energy GECA40-24G	24 V	80 %	CE	Chassis Mount	40 W	Open Frame	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	45 °C	0 °C	1.7 A	ITE (Commercial)	90 VAC	264 VAC	1	Adjustable Output Universal Input
SL POWER / Advanced Energy GECA40DG	5 V	80 %	CE	Chassis Mount	40 W	Open Frame	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	45 °C	0 °C	3.5 A	ITE (Commercial)	90 VAC	264 VAC	3	Adjustable Output Universal Input	300 mA	1.2 A	24 V	-12 V
SL POWER / Advanced Energy GECA40HG	3.3 V	80 %	CE	Chassis Mount	40 W	Open Frame	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	45 °C	0 °C	3.5 A	ITE (Commercial)	90 VAC	264 VAC	3	Adjustable Output Universal Input	300 mA	2 A	12 V	-12 V
SL POWER / Advanced Energy GECA40BG	5 V	80 %	CE	Chassis Mount	40 W	Open Frame	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	45 °C	0 °C	3.5 A	ITE (Commercial)	90 VAC	264 VAC	3	Adjustable Output Universal Input	300 mA	2 A	12 V	-5 V
SL POWER / Advanced Energy GECA40AG	5 V	80 %	CE	Chassis Mount	40 W	Open Frame	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	45 °C	0 °C	3.5 A	ITE (Commercial)	90 VAC	264 VAC	3	Adjustable Output Universal Input	300 mA	2 A	12 V	-12 V
SL POWER / Advanced Energy GECA40-15G	15 V	80 %	CE	Chassis Mount	40 W	Open Frame	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	45 °C	0 °C	2.7 A	ITE (Commercial)	90 VAC	264 VAC	1	Adjustable Output Universal Input
SL POWER / Advanced Energy GECA40AB
SL POWER / Advanced Energy GECA40-12G	12 V	80 %	CE	Chassis Mount	40 W	Open Frame	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	45 °C	0 °C	3.3 A	ITE (Commercial)	90 VAC	264 VAC	1	Adjustable Output Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 39.47
		5	$ 37.19
		10	$ 36.24
		25	$ 35.03
		50	$ 34.15
		100	$ 33.28

Description

General part information

GECA40 Series

Open Frame AC DC Converters 3 Output 5V 12V -12V 90 ~ 264 VAC Input
