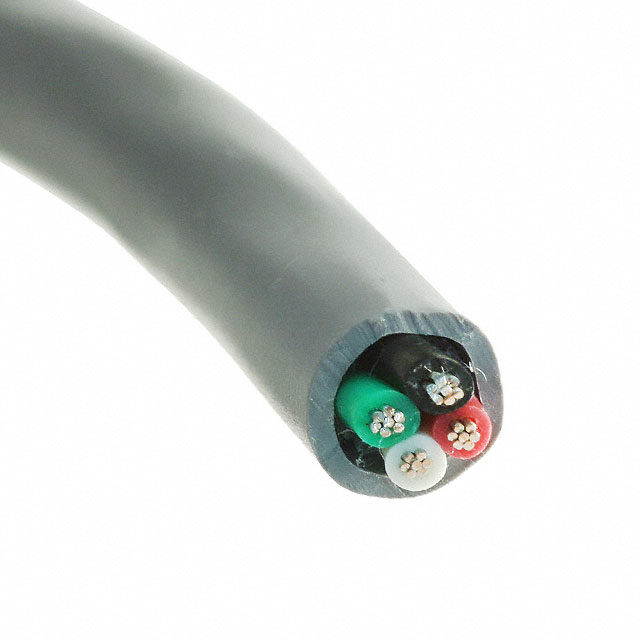

M13404 SL005

Active

ALPHA WIRE

CABLE 4COND 20AWG SLATE 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 20AWG SLATE 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M13404 SL005

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.219 in
Jacket (Insulation) Diameter [diameter]	5.56 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Voltage	300 V
Wire Gauge	20 AWG

Part	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Number of Conductors	Ratings	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Material	Wire Gauge	Length	Length
ALPHA WIRE M13404 SL002	500 '	152.4 m	-20 C	80 C	Copper Tinned	Multi-Conductor	28	7	300 V	4	UL Style 2464	Poly-Vinyl Chloride (PVC)	0.219 in	5.56 mm	Slate	Poly-Vinyl Chloride (PVC)	20 AWG
ALPHA WIRE M13404 SL005	100 ft	30.5 m	-20 C	80 C	Copper Tinned	Multi-Conductor	28	7	300 V	4	UL Style 2464	Poly-Vinyl Chloride (PVC)	0.219 in	5.56 mm	Slate	Poly-Vinyl Chloride (PVC)	20 AWG
ALPHA WIRE M13404 SL001			-20 C	80 C	Copper Tinned	Multi-Conductor	28	7	300 V	4	UL Style 2464	Poly-Vinyl Chloride (PVC)	0.219 in	5.56 mm	Slate	Poly-Vinyl Chloride (PVC)	20 AWG	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Conductor Multi-Conductor Cable Slate 20 AWG 100.0' (30.5m)
