3045732

Active

Phoenix Contact

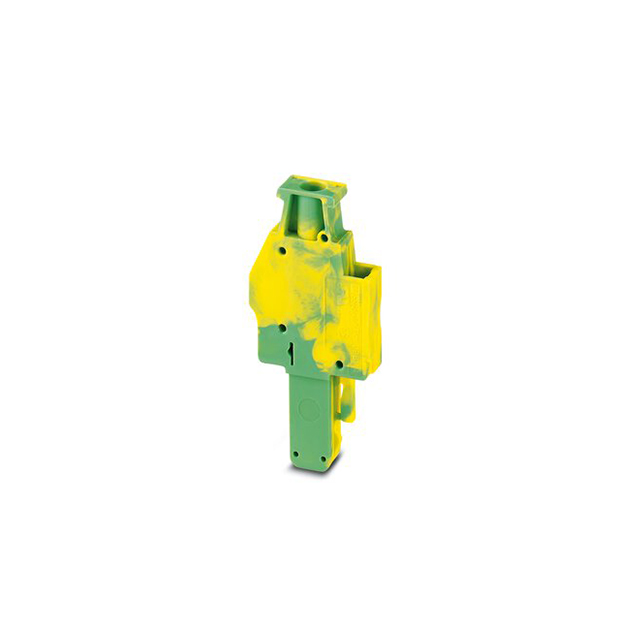

DIN RAIL TERMINAL BLOCKS UPBV 4/ 1-L GNYE

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS UPBV 4/ 1-L GNYE

Technical Specifications

Parameters and characteristics for this part

Specification	3045732

Color	Green, Yellow
Current - IEC	32 A
Current - UL	30 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Insulation Height	48.5 mm
Insulation Height	1.909 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	1
Plug Wire Entry	90 °
Positions Per Level	1
Screw Size	M3
Termination Style	Screw
Torque - Screw [Max]	0.8 Nm
Torque - Screw [Max]	7.1 Lb-In
Torque - Screw [Min]	0.6 Nm
Torque - Screw [Min]	5.3 Lb-In
Type	Plug, Female Sockets
Voltage - IEC	800 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm² [Max]	6 mm²
Wire Gauge or Range - mm² [Min]	0.14 mm²
Wire Strip Length	9 mm

DIN Rail Terminal Blocks UPBV 4/ 1-L GNYE

Part	Wire Strip Length	Features	Housing Material	Current - IEC	Plug Wire Entry	Positions Per Level	Torque - Screw [Min]	Torque - Screw [Max]	Torque - Screw [Max]	Torque - Screw [Min]	Insulation Height	Insulation Height	Voltage - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Number of Levels	Mounting Type	Color	Screw Size	Current - UL	Number of Positions	Material Flammability Rating
Phoenix Contact 3045732	9 mm	Interlocking (Side)	Polyamide (PA) Nylon	32 A	90 °	1	0.6 Nm	0.8 Nm	7.1 Lb-In	5.3 Lb-In	48.5 mm	1.909 in	800 V	6 mm²	0.14 mm²	Screw	26 AWG	10 AWG	Plug Female Sockets	1	Free Hanging (In-Line)	Green Yellow	M3	30 A	1	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

DIN Rail Terminal Blocks UPBV 4/ 1-L GNYE
