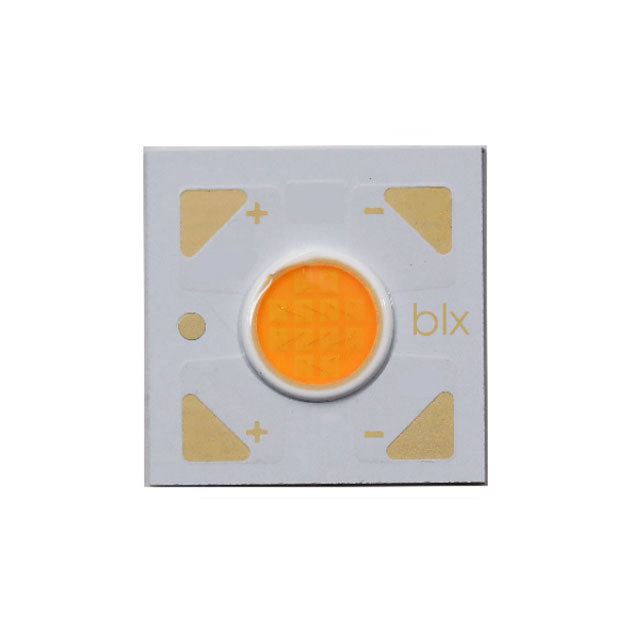

BXRH-65S0601-A-74

Active

BRIDGELUX

LED COB V4HD THRIVE WHT SQ 6500K

Search across all available documentation for this part.

Active

BRIDGELUX

LED COB V4HD THRIVE WHT SQ 6500K

Technical Specifications

Parameters and characteristics for this part

Specification	BXRH-65S0601-A-74

CCT (K)	6500 K
Color	Cool, White
Configuration	Square
CRI (Color Rendering Index)	98
Current - Max [Max]	240 mA
Current - Test	175 mA
Height [z]	1.63 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	4.5 mm
Lumens/Watt @ Current - Test	107 lm/W
Luminous Flux @ Current/Temperature	682 lm
Size / Dimension [x]	12.5 mm
Size / Dimension [y]	12.5 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	36.4 V

Part	Viewing Angle	Type	Height [z]	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Current - Max [Max]	CCT (K)	Voltage - Forward (Vf) (Typ)	Lens Type	Luminous Flux @ Current/Temperature	Color	Configuration	Current - Test	Size / Dimension [x]	Size / Dimension [y]
BRIDGELUX BXRH-65S1001-G-74	120 °	Chip On Board (COB)	1.63 mm	6.6 mm	98	111 lm/W	960 mA	6500 K	18.2 V	Flat	1414 lm	Cool White	Square
BRIDGELUX BXRH-65S0601-A-74	120 °	Chip On Board (COB)	1.63 mm	4.5 mm	98	107 lm/W	240 mA	6500 K	36.4 V	Flat	682 lm	Cool White	Square	175 mA	12.5 mm	12.5 mm
BRIDGELUX BXRH-65S1001-B-73	120 °	Chip On Board (COB)	1.63 mm	6.6 mm	98	111 lm/W	480 mA	6500 K	36.4 V	Flat	1414 lm	Cool White	Square	350 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.96

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) V4 HD Thrive™ Array White, Cool Square
