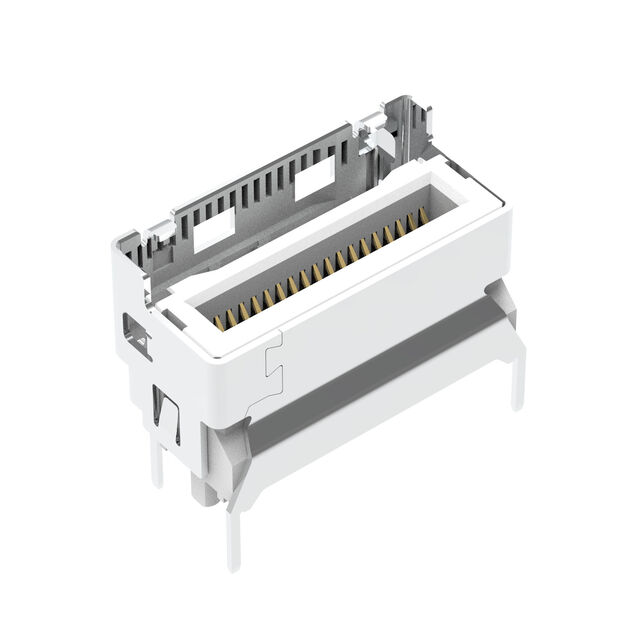

G98V11332HR

Active

Amphenol ICC (Commercial Products)

CONN EDGE DUAL FMALE 38POS 0.024

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN EDGE DUAL FMALE 38POS 0.024

Technical Specifications

Parameters and characteristics for this part

Specification	G98V11332HR

Card Type	Non Specified - Dual Edge
Color	Natural
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Guide
Gender	Female
Material - Insulation	Thermoplastic
Mounting Type	Surface Mount
Number of Positions	38
Number of Positions/Bay/Row [custom]	19
Number of Rows	2
Pitch [x]	0.6 mm
Pitch [x]	0.024 in
Read Out	Dual
Termination	Solder

Part	Card Type	Termination	Material - Insulation	Contact Finish	Features	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Color	Mounting Type	Contact Material	Read Out	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]
Amphenol ICC (Commercial Products) G98V11332HR	Non Specified - Dual Edge	Solder	Thermoplastic	Gold	Board Guide	38	0.6 mm	0.024 in	2	Natural	Surface Mount	Copper Alloy	Dual	Female	0.76 Ám	30 Áin	19

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

38 Position Female Connector Non Specified - Dual Edge Gold 0.024" (0.60mm) Natural
