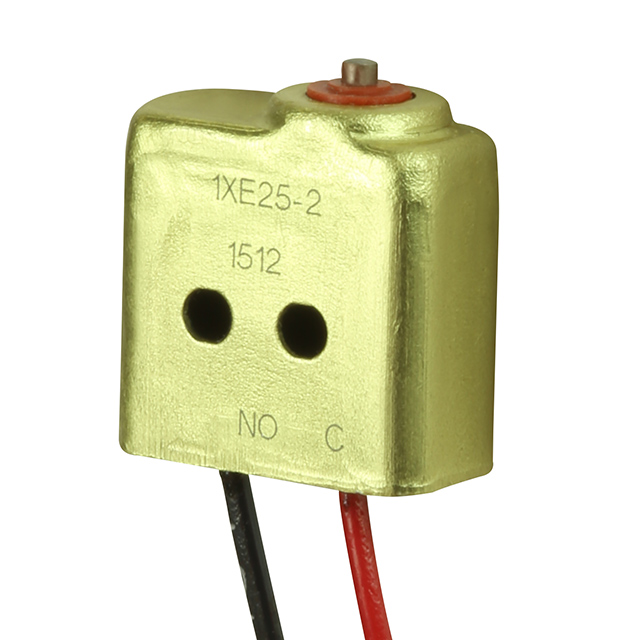

1XE25-2
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 7A 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1XE25-2
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACT SPST-NO 7A 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1XE25-2 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPST-NO |
| Current Rating (Amps) | 7 A |
| Differential Travel | 0.13 mm |
| Differential Travel | 0.005 in |
| Mounting Type | Chassis Mount |
| Operating Force [Max] | 482 gf |
| Operating Force [Min] | 141 gf |
| Operating Position | 10.8 mm |
| Operating Position | 0.425 " |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -54 °C |
| Overtravel | 0.004 in |
| Overtravel | 0.1 mm |
| Pretravel | 0.05 in |
| Pretravel | 1.27 mm |
| Release Force | 113 gf |
| Switch Function | Off-Mom |
| Termination Style | Wire Leads |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 169.62 | |
Description
General part information
1XE25 Series
Switch SPST-NO Chassis Mount
