3040-10-00

Active

CnC Tech, LLC

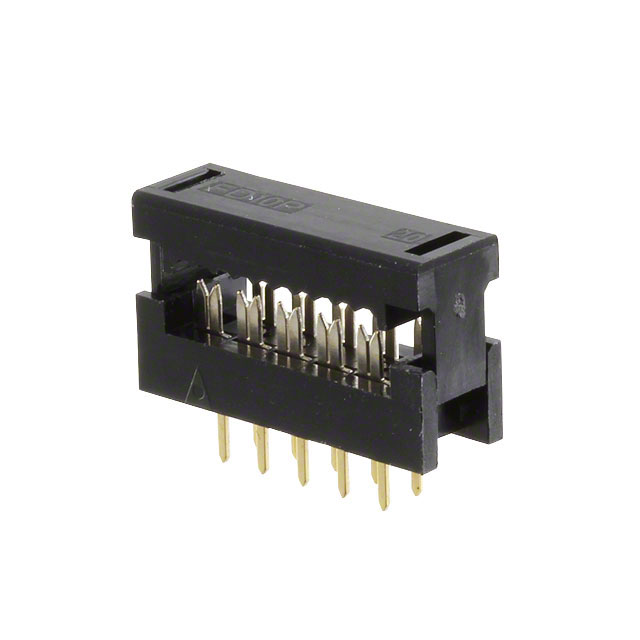

CONN IDC CONNECTOR HDR 10 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN IDC CONNECTOR HDR 10 POS 2.54MM SOLDER ST TOP ENTRY THRU-HOLE

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Board-Side Pitch	Board-Side Pitch	Number of Positions Loaded	Cable Termination	Number of Positions	Features	Number of Rows	Row Spacing [x]	Row Spacing	Mounting Type	Contact Finish	Cable Pitch	Cable Pitch	Contact Finish Thickness
CnC Tech, LLC 3040-10-00	DIP Header Ribbon Cable	0.1 in	2.54 mm	All	IDC	10	Feed Through	2	0.1 in	2.54 mm	Through Hole	Gold	1.27 mm	0.05 in	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Ribbon Cable, DIP Header Connector IDC Through Hole
