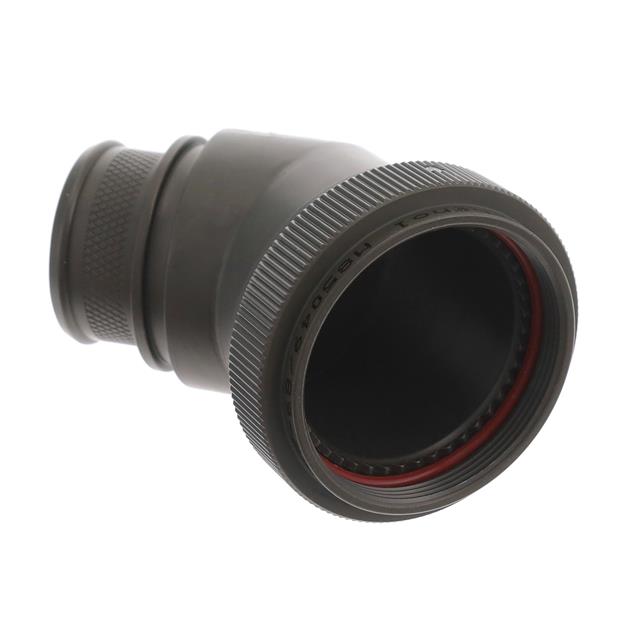

M85049/89-25W03

Active

Amphenol Interconnect India

CONN BACKSHELL BANDING SZ25 J

Deep-Dive with AI

Search across all available documentation for this part.

M85049/89-25W03

Active

Amphenol Interconnect India

CONN BACKSHELL BANDING SZ25 J

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/89-25W03

Cable Exit	45 °
Cable Opening [custom]	25.65 mm
Cable Opening [custom]	1.01 in
Color	Olive Drab
Diameter - Outside [diameter]	1.891 in
Diameter - Outside [diameter]	48.03 mm
Features	Self Locking
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	J
Shell Size - Insert	25
Shielding	Unshielded
Type	Banding, Backshell

M85049/89 Series

Part	Color	Plating	Cable Opening [diameter]	Cable Opening [diameter]	Material	Cable Exit	Shielding	For Use With/Related Products	Type	Features	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Shell Size - Insert	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]
Amphenol Interconnect India M85049/89-19Z02	Black	Zinc Cobalt	0.64 in	16.26 mm	Aluminum Alloy	45 °	Unshielded	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	38.61 mm	1.52 in	19	F
Amphenol Interconnect India M85049/89-13Z02	Black	Zinc Cobalt			Aluminum Alloy	45 °	Unshielded	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	29.46 mm	1.16 in	13	C	8.13 mm	0.32 in
Amphenol Interconnect India M85049/89-17Z02	Black	Zinc Cobalt			Aluminum Alloy	45 °	Unshielded	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	35.81 mm	1.41 in		17 E	12.95 mm	0.51 in
Amphenol Interconnect India M85049/89-23Z02	Black	Zinc Cobalt			Aluminum Alloy	45 °	Unshielded	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	44.96 mm	1.77 "	23	H	17.78 mm	0.7 in
Amphenol Interconnect India M85049/89-25W03	Olive Drab	Cadmium			Aluminum Alloy	45 °	Unshielded	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	48.03 mm	1.891 in	25	J	25.65 mm	1.01 in
Amphenol Interconnect India M85049/89-15Z02	Black	Zinc Cobalt	0.45 in	11.43 mm	Aluminum Alloy	45 °	Unshielded	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	32.51 mm	1.28 in	15	D
Amphenol Interconnect India M85049/89-15Z03	Black	Zinc Cobalt			Aluminum Alloy	45 °	Unshielded	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	32.51 mm	1.28 in	15	D	14.48 mm	0.57 in
Amphenol Interconnect India M85049/89-11Z03	Black	Zinc Cobalt			Aluminum Alloy	45 °	Unshielded	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	25.15 mm	0.99 in	11	B	8.13 mm	0.32 in
Amphenol Interconnect India M85049/89-25Z02	Black	Zinc Cobalt	0.76 in	19.3 mm	Aluminum Alloy	45 °	Unshielded	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	48.01 mm	1.89 "	25	J
Amphenol Interconnect India M85049/89-23Z03	Black	Zinc Cobalt	0.95 in	24.13 mm	Aluminum Alloy	45 °	Unshielded	MIL-DTL-38999 Series III IV	Backshell Banding	Self Locking	44.96 mm	1.77 "	23	H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.07
		1	$ 1053.65
		10	$ 64.30
		25	$ 61.83
		50	$ 59.77
		100	$ 56.47

Description

General part information

M85049/89 Series

Olive Drab Connector Backshell, Banding 25, J
