09210644702

Active

HARTING Technology Group

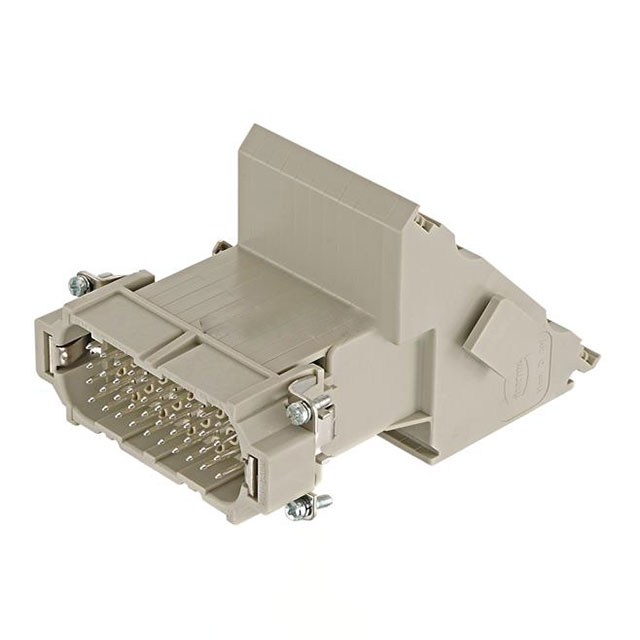

CONNECTOR: HDC; CONTACT INSERT; FEMALE; 10A; 250V; HAN D® AV; 64+PE

Search across all available documentation for this part.

Active

HARTING Technology Group

CONNECTOR: HDC; CONTACT INSERT; FEMALE; 10A; 250V; HAN D® AV; 64+PE

Technical Specifications

Parameters and characteristics for this part

Specification	09210644702

Color	Gray
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	64+Ground
Termination Style	Terminal Block, Straight - Screw
Voltage Rating	250 VDC

Part	Current Rating (Amps)	Voltage Rating	Material Flammability Rating	Housing Material	Color	Gender	Number of Positions	Termination Style	Contact Material	Contact Finish
HARTING Technology Group 09210644602	10 A	250 VDC	UL94 V-0	Polycarbonate (PC)	Gray	Female	64+Ground	Terminal Block Straight - Screw	Copper Alloy
HARTING Technology Group 09210644702	10 A	250 VDC	UL94 V-0	Polycarbonate (PC)	Gray	Female	64+Ground	Terminal Block Straight - Screw	Copper Alloy
HARTING Technology Group 09210404612	10 A	250 VDC	UL94 V-0	Polycarbonate (PC)	Gray	Male	46+Ground	Terminal Block Straight - Screw	Copper Alloy	Silver
HARTING Technology Group 09210404712	10 A	250 VDC	UL94 V-0	Polycarbonate (PC)	Gray	Female	46+Ground	Terminal Block Straight - Screw	Copper Alloy	Silver
HARTING Technology Group 09210644701	10 A	250 VDC	UL94 V-0	Polycarbonate (PC)	Gray	Female	64+Ground	Terminal Block Straight - Screw	Copper Alloy
HARTING Technology Group 09210404601	10 A	250 VDC	UL94 V-0	Polycarbonate (PC)	Gray	Male	46+Ground	Terminal Block Straight - Screw	Copper Alloy	Silver
HARTING Technology Group 09210404611	10 A	250 VDC	UL94 V-0	Polycarbonate (PC)	Gray	Male	46+Ground	Terminal Block Straight - Screw	Copper Alloy	Silver
HARTING Technology Group 09210644612	10 A	250 VDC	UL94 V-0	Polycarbonate (PC)	Gray	Female	64+Ground	Terminal Block Straight - Screw	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 710.73
Newark	Each	1	$ 694.32
		10	$ 661.48
		25	$ 638.02
TME	N/A	1	$ 438.77
		3	$ 392.59
		5	$ 346.40

General part information

Female Insert Gray 64+Ground Position Terminal Block, Straight - Screw
